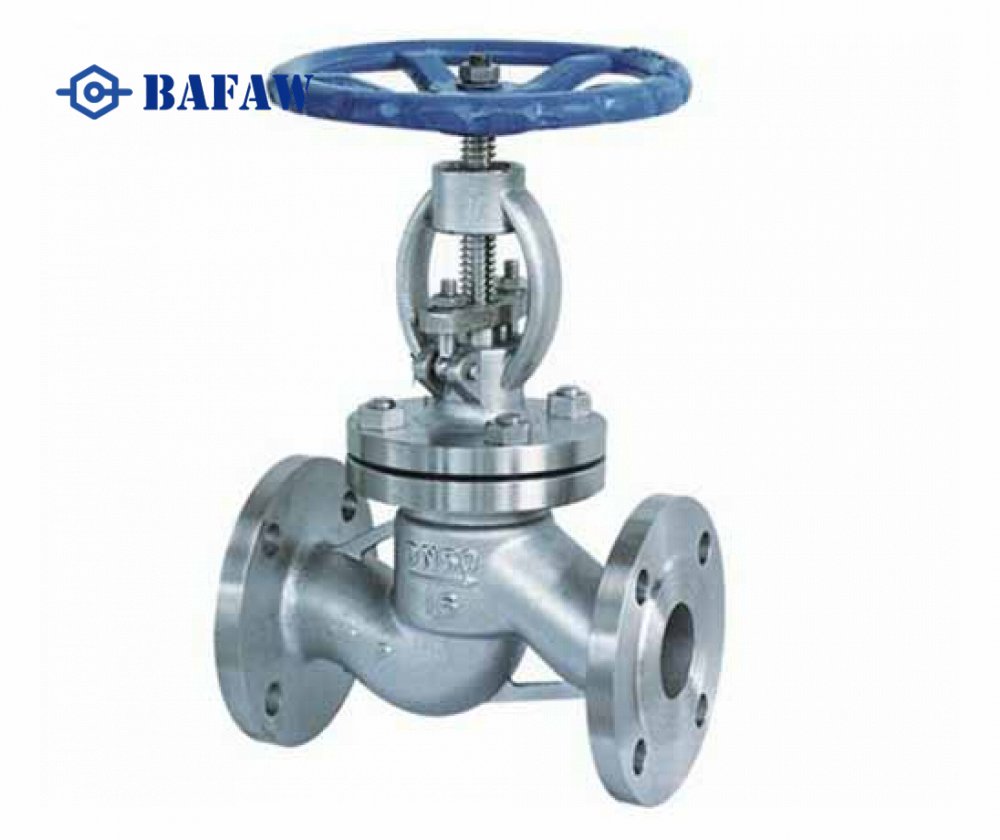

DIN3356 Cast Steel Globe Valve
1.Standard:API598,DIN3356,BS7350
2.Size : DN15~DN600mm (1/2"-24")
3.Pressure : PN1.0~10MPa(class150-class900)
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
I want to inquire
Add to Inquiry Sheet
Description
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to DIN EN 13709 、DIN 3356
● Flange dimensions Conform to EN1092-1 PN16
● Face to Face dimensions Conform to EN558-1 list 1
● Testing Conform to EN12266-1
Specification
| No. | Part Name | Material |  |
| 1 | Body | GS-C25 | |
| 2 | Disk | 2Cr13 | |
| 3 | Seat ring | 1Cr13/ZCuZn38Mn2Pb2 | |
| 4 | Stem | 1Cr13 | |
| 5 | Bellow | 304/316 | |
| 6 | Bonnet | GS-C25 | |
| 7 | Packing | Graphite | |
| 8 | Stem nut | QAl9-4 | |
| 9 | Handwheel | Steel |
Dimensions data(mm)
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
| D2 | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 158 | 188 | 212 | 268 | 320 | 378 |
| b | 16 | 18 | 18 | 18 | 18 | 18 | 18 | 20 | 20 | 22 | 22 | 24 | 26 | 28 |
| n-d | 4-14 | 4-14 | 4-14 | 4-18 | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-18 | 8-22 | 12-22 | 12-26 | 12-26 |
| f | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| H | 221 | 221 | 232 | 236 | 245 | 254 | 267 | 283 | 348 | 402 | 456 | 605 | 650 | 720 |
| W | 140 | 140 | 160 | 160 | 180 | 200 | 220 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
