Pipe Outlet Fittings
Brand : BAFAW
Product origin : China
Delivery time : 30 Days
Supply capacity : 100000000 Piece/Pieces Per Year
Description
Specification
Size: | 1/8"-4"(6mm-100mm) |
Specification: | Dim. Spec: ANSI B16.11 , MSS SP-79 |
Material Spec: | ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L |
Size of raw material: | DIA. 19-85MM Round Bar |

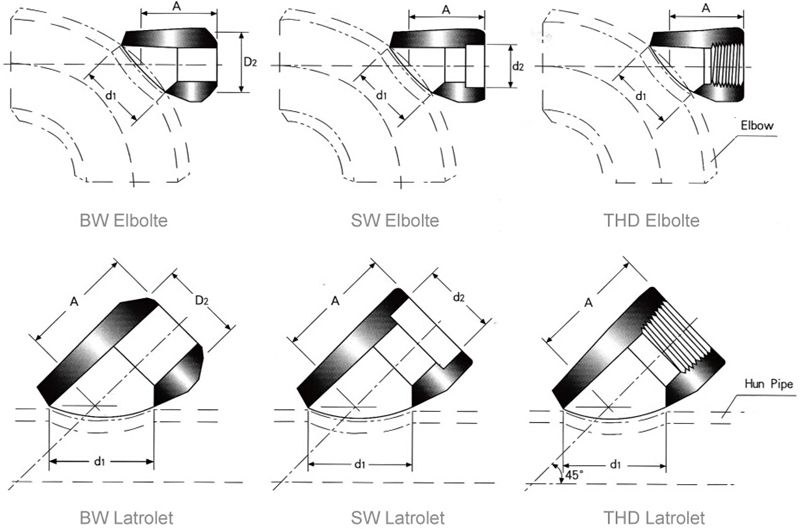

Type: | Socketolet, Threadolet, weldolet, elboltes, latrolet. |

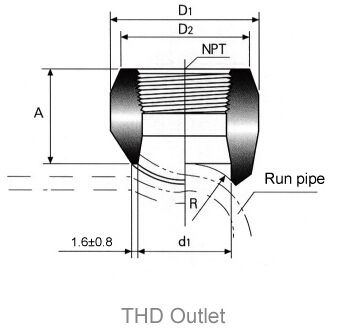

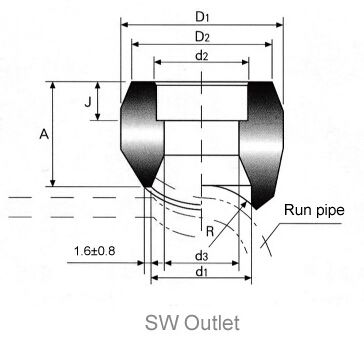

Connection Type: | Socket-Weld and Threaded (NPT, BSP) |
Rating: | 2000LBS, 3000LBS, 6000LBS, 9000LBS. |
Marking: | 1.Carbon and alloy steel: marked by stamping. |
2.Stainless:Marked by electro-etched or jet printed or stamped | |
3.3/8" under: brand only | |
4.1/2" to 4": marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size. | |
Packing: | Carton/ Plywood cases |
