Description

Size:1/8"-4"(6mm-100mm)
Specification:Dim. Spec: ANSI B16.11 , MSS SP-79
Material Spec:ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L
Size of raw material:DIA. 19-85MM Round Bar
Type:Elbow, Cross, Street Elbow, Tee, Boss, Coupling, Half Coupling, Cap,Plug, Bushing, Union, Swage Nipple, Bull Plug, Reduced Insert, Pipe Nipple etc.
Connection Type:Socket-Weld and Threaded (NPT, BSP)
Rating:2000LBS, 3000LBS, 6000LBS, 9000LBS.
Marking:1.Carbon and alloy steel: marked by stamping.
2.Stainless:Marked by electro-etched or jet printed or stamped
3.3/8" under: brand only
4.1/2" to 4": marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size.
Paking:Carton/ Plywood cases


Specification

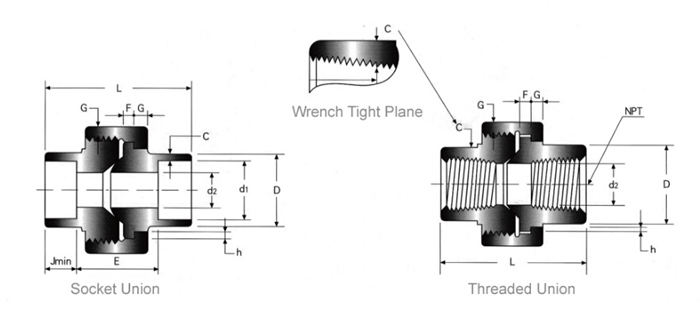

socket union vs threaded union

Nominal Pipe SizeEnd DIAWallNutThreads Per inchMale FlangeBearingLength Assem NominalLaying LengthBore
D minC minG minHF minh min
LEd2
DNNPSSocket ThreadSocket ThreadSocket Thread
61/821.814.73.22.53.2163.21.341.4217.4
81/421.819.13.33.13.2163.21.341.42110.9
103/825.922.93.53.23.5143.51.5462413.9
151/231.227.74.13.83.7143.71.5492417.5
203/437.133.54.344.1114.11.8572922.2
25145.541.45.0 4.64.5114.61.9573028.4
321 1/454.950.65.34.95.2105.42.271.13736.5
401 1/261.557.25.65.15.6105.92.376.53842.4
50275.270.16.15.66.4106.62.786.13953.9
652 1/291.785.37.77.17.187.53.1102.45665.3
803    109.2102.48.37.78.0 88.33.61095979.9
