Double Head Anchor - Lifting Anchor System For Construction

Brand : BAFAW

Product origin : China

Delivery time : 30 Days

Supply capacity : 100000000 Piece/Pieces Per Year

I want to inquire

Add to Inquiry Sheet

FREE GET QUOTE

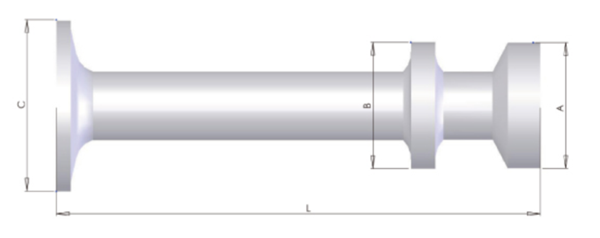

Double Head Anchor Dimensions

Product Code	Safe Working	Length	Pin Head	Pin Base
(Self Colour)	Load (Kg)	(mm)	(mm)	(mm)
P-013055	1300	55	19	25
P-013085	1300	85	19	25
P-013120	1300	120	19	25
P-025055	2500	55	26	35
P-025085	2500	85	26	35
P-025120	2500	120	26	35
P-025170	2500	170	26	35
P-050075	5000	75	36	50
P-050120	5000	120	36	50
P-050240	5000	240	36	50
With more and more automated processes now in production.
The Pipe Pin Anchor allows for the automatic placement of anchors.
Speeding up the whole production process.
