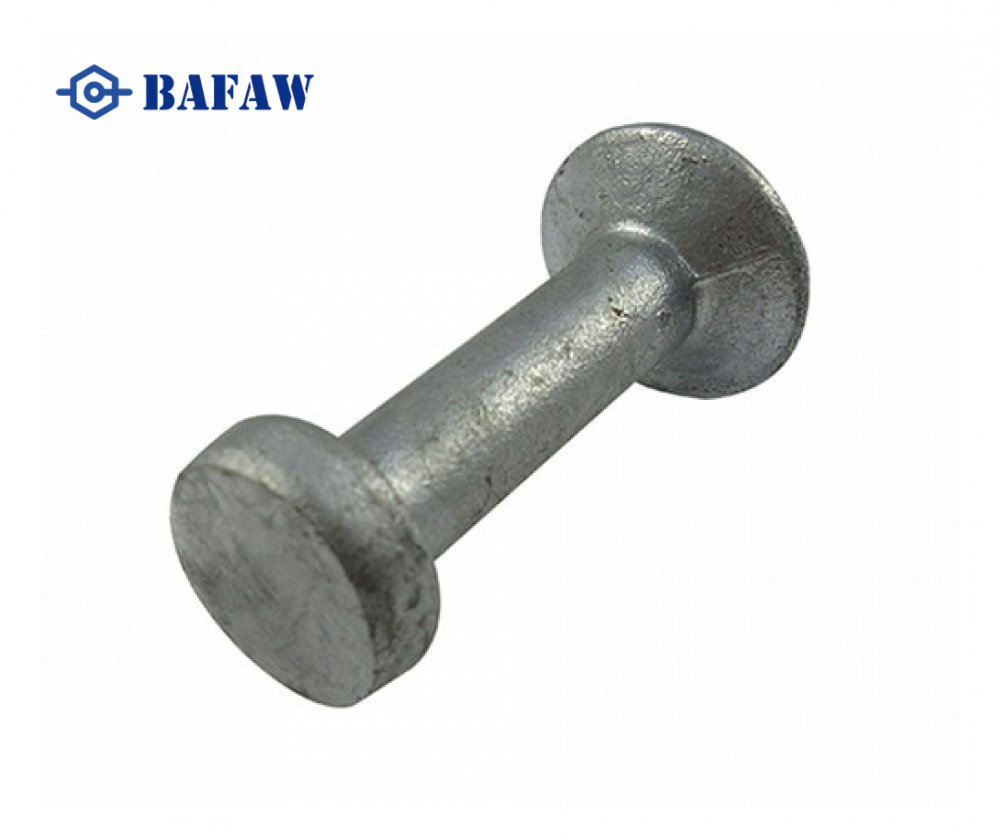

T - Anchor, Lifting Pin (Dog Bone) Anchors

Brand : BAFAW

Product origin : China

Delivery time : 30 Days

Supply capacity : 100000000 Piece/Pieces Per Year

Dog Bone Lifting Anchors are an economical, safe and effective method for lifting and transporting precast concrete units

I want to inquire

Add to Inquiry Sheet

FREE GET QUOTE

Description

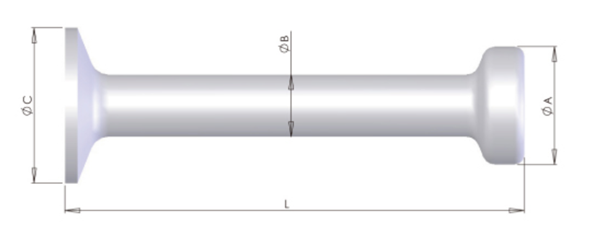

Lifting Pin (Dog Bone) Anchors Dimensions

Load Group	Product Code	Safe Working	Length	Dimensions
(Ton)	(Self Colour)	Load (Kg)	L (mm)	a (mm)	b (mm)	c (mm)
1.3Ton	T-13035	1300	35	19	10	25
	T-13040	1300	40	19	10	25
	T-13050	1300	50	19	10	25
	T-13055	1300	55	19	10	25
	T-13065	1300	65	19	10	25
	T-13085	1300	85	19	10	25
	T-13120	1300	120	19	10	25
	T-13240	1300	240	19	10	25
2.5Ton	T-25045	2500	45	26	14	35
	T-25055	2500	55	26	14	35
	T-25065	2500	65	26	14	35
	T-25070	2500	70	26	14	35
	T-25085	2500	85	26	14	35
	T-25100	2500	100	26	14	35
	T-25120	2500	120	26	14	35
	T-25140	2500	140	26	14	35
	T-25170	2500	170	26	14	35
	T-25180	2500	180	26	14	35
	T-25210	2500	210	26	14	35
	T-25280	2500	280	26	14	35
Load Group	Product Code	Safe Working	Length	Dimensions
(Ton)	(Self Colour)	Load (Kg)	L (mm)	a (mm)	b (mm)	c (mm)
5.0Ton	T-50065	5000	65	36	20	50
	T-50075	5000	75	36	20	50
	T-50080	5000	80	36	20	50
	T-50085	5000	85	36	20	50
	T-50095	5000	95	36	20	50
	T-50100	5000	100	36	20	50
	T-50110	5000	110	36	20	50
	T-50120	5000	120	36	20	50
	T-50140	5000	140	36	20	50
	T-50150	5000	150	36	20	50
	T-50160	5000	160	36	20	50
	T-50170	5000	170	36	20	50
	T-50180	5000	180	36	20	50
	T-50210	5000	210	36	20	50
	T-50240	5000	240	36	20	50
	T-50340	5000	340	36	20	50
	T-50480	5000	480	36	20	50
7.5Ton	T-75085	7500	85	46	24	60
	T-75095	7500	95	46	24	60
	T-75100	7500	100	46	24	60
	T-75120	7500	120	46	24	60
	T-75140	7500	140	46	24	60
	T-75150	7500	150	46	24	60
	T-75160	7500	160	46	24	60
	T-75165	7500	165	46	24	60
	T-75200	7500	200	46	24	60
	T-75300	7500	300	46	24	60
	T-75540	7500	540	46	24	60
Load Group	Product Code	Safe Working	Length	Dimensions
(Ton)	(Self Colour)	Load (Kg)	L (mm)	a (mm)	b (mm)	c (mm)
10.0Ton	T-100085	10000	85	46	28	70
	T-100100	10000	100	46	28	70
	T-100110	10000	110	46	28	70
	T-100115	10000	115	46	28	70
	T-100120	10000	120	46	28	70
	T-100135	10000	135	46	28	70
	T-100150	10000	150	46	28	70
	T-100170	10000	170	46	28	70
	T-100200	10000	200	46	28	70
	T-100220	10000	220	46	28	70
	T-100250	10000	250	46	28	70
	T-100340	10000	340	46	28	70
	T-100650	10000	650	46	28	70
	T-100680	10000	680	46	28	70
15.0Ton	T-150140	15000	140	70	38	80
	T-150150	15000	150	70	38	80
	T-150165	15000	165	70	38	80
	T-150200	15000	200	70	38	80
	T-150210	15000	210	70	38	80
	T-150300	15000	300	70	38	80
	T-150400	15000	400	70	38	80
	T-150840	15000	840	70	38	80
20.0Ton	T-200165	20000	165	70	40	98
	T-200200	20000	200	70	40	98
	T-200250	20000	250	70	40	98
	T-200340	20000	340	70	40	98
	T-200500	20000	500	70	40	98
	T-2001000	20000	1000	70	40	98
32Ton	T-320175	32000	175	88	50	135
	T-320280	32000	280	88	50	135
	T-320500	32000	500	88	50	135
	T-320700	32000	700	88	50	135
	T-321200	32000	1200	88	50	135
