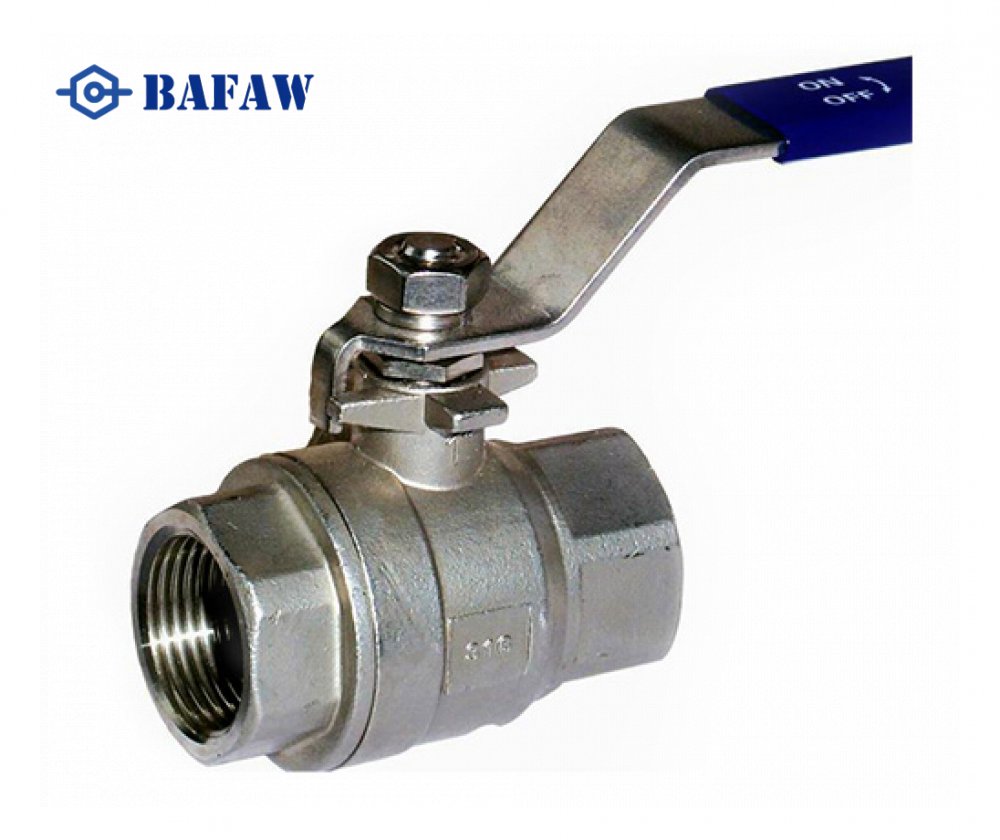

2 Piece Threaded Steel Ball Valve
Material：stainless steel ,brass , bronze
Size：1/4’’-4’’
Thread：NPT, BSP, DIN2999, BSPT
Working pressure1000psi , 2000psi
Temperature range-20-220℃
Medium Water, oil, gas and other medium
Type:2-way 3-way 1-way
I want to inquire
Add to Inquiry Sheet
Description
1. Two piece ball valve.
2. Full bore.
3. Size: 1/4"-3"
4. Anti-static device.
5. Working Pressure: 1000WOG , 2000WOG
6. Threaded End: BSPT, NPT, DIN2999
Specification
| SIZE | φd | L | H | W | C | TORQUE | END | |
| N.M | ||||||||
| 1/4" | 10.5 | 48 | 51.5 | 100 | 10 | 4 | BSP, BSPT,NPT, PT, DIN……. | |
| 3/8" | 10.5 | 48 | 51.5 | 100 | 10 | 4 | ||
| 1/2" | 14 | 54 | 57.5 | 100 | 12.5 | 5 | ||
| 3/4" | 19 | 62 | 64.5 | 120 | 13 | 7 | ||
| 1" | 24 | 73 | 68 | 120 | 15.5 | 9 | ||
| 1-1/4" | 31 | 87 | 79.5 | 150 | 17.5 | 16 | ||
| 1-1/2" | 38 | 96 | 90.5 | 170 | 18 | 23 | ||
| 2" | 48 | 108 | 98 | 170 | 18 | 26 | ||
| 2-1/2" | 64 | 138 | 122 | 250 | 24 | 50 | ||
| 3" | 76 | 164 | 132 | 250 | 27.5 | 86 | ||
| 4" | 98 | 193 | 163 | 300 | 28 | 118 | ||

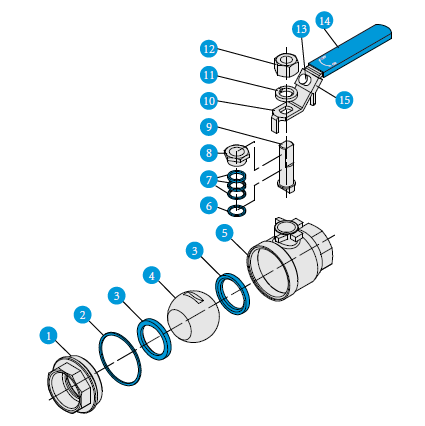

| ITEM NO | PART NAME | MATERIAL | ||||||
| 1 | Cap | CF8M | CF8 | WCB | ||||
| 2 | Body Gasket | PTFE | ||||||
| 3 | Ball Seat | PTFE | R-PTFE | |||||
| 4 | Ball | SS316 | SS304 | |||||
| 5 | Body | CF8M | CF8 | WCB | ||||
| 6 | Thrust Washer | PTFE | ||||||
| 7 | Stem Packing | PTFE | ||||||
| 8 | Stop Nut | SS304 | ||||||
| 9 | Stem | SS316 | SS304 | |||||
| 10 | Handle | SS304 | ||||||
| 11 | Spring Washer | SS304 | ||||||
| 12 | Stem Nut | SS304 | ||||||
| 13 | Locking Pin | Plastic | ||||||
| 14 | Handle Cover | Plastic | ||||||
| 15 | Locking Device | Ss304 | ||||||
