| Product Code | Safe Working | Length | Pin Head | Hole Dia. |
| (Self Colour) | Load (Kg) | (mm) | (mm) | (mm) |
| O-013065 | 1300 | 65 | 19 | 9 |
| O-025090 | 2500 | 90 | 26 | 13 |
| O-050090 | 5000 | 90 | 36 | 18 |
| O-050120 | 5000 | 120 | 36 | 18 |
| O-100115 | 10000 | 115 | 47 | 25 |
| O-100180 | 10000 | 180 | 47 | 25 |
| O-200250 | 20000 | 250 | 70 | 37 |
| O-320300 | 32000 | 300 | 88 | 47 |

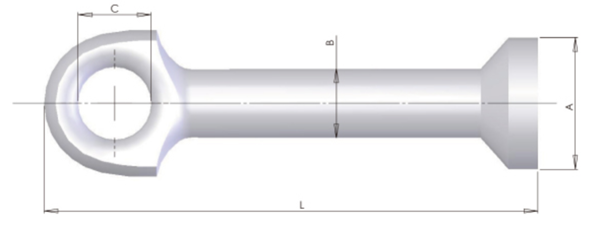

| The Eye Pin Anchor is used whenever it is not possible to transfer the load | ||||
| through the foot. It is normally used in beams or thin concrete units. | ||||
