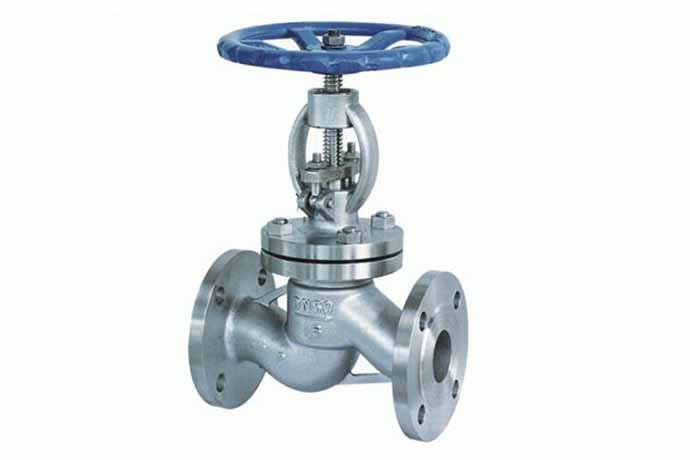

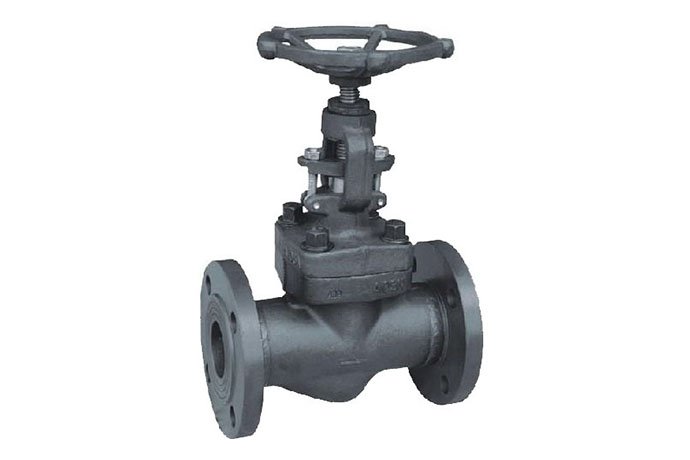

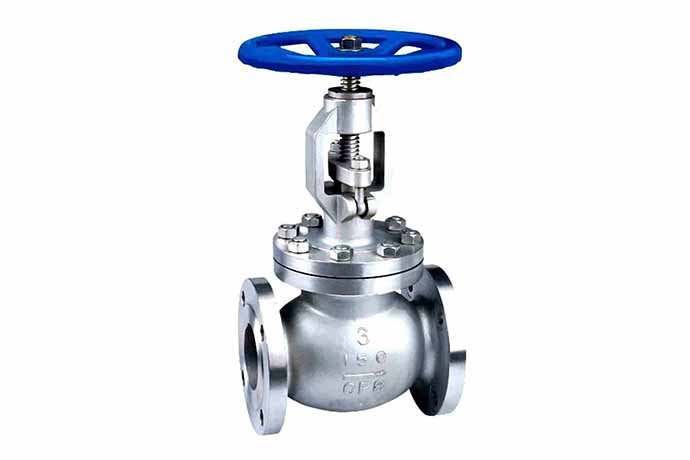

Description

TECHNICAL REQUIREMENT :

    ● Design and Manufacture  Conform to ANSI B16.34

    ● Flange dimensions  Conform to ASME B16.5

    ● Face to Face  dimensions Conform to ASME B16.10

    ● Testing Conform to  API 598

Specification

No.Part NameMaterial
1BodyA216-WCB+Cr13
2DiskA105+Cr13
3StemA182-F6a
4Bonnet StudA193-B7
5Bonnet Stud NutA194-2H
6Bonnet A216-WCB
7Stem Back SeatA276-420
8PackingGraphite
9GlandA276-420
10Gland FlangeA216-WCB
11YokesleeveAluminum-Bronze
12HandwheelMalleable Iron



Dimensions data(mm)

DN2345681012
L203216241292356406495622698
D152178191229254279343406483
D1120.7139.7152.4190.5215.9241.3298.5362431.8
D292105127157186216270324381
b14.416.417.922.422.423.926.928.930.2
n-d4-194-194-198-198-228-228-2212-2512-25
f1.61.61.61.61.61.61.61.61.6
H300338370442505520585688765
W200250250300350350400450500
