Description

Size:1/8"-4"(6mm-100mm)
Specification:Dim. Spec: ANSI B16.11 , MSS SP-79
Material Spec:ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L
Size of raw material:DIA. 19-85MM Round Bar

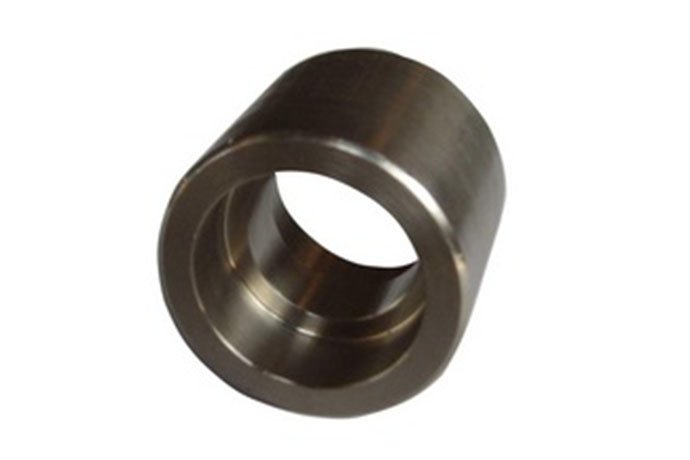

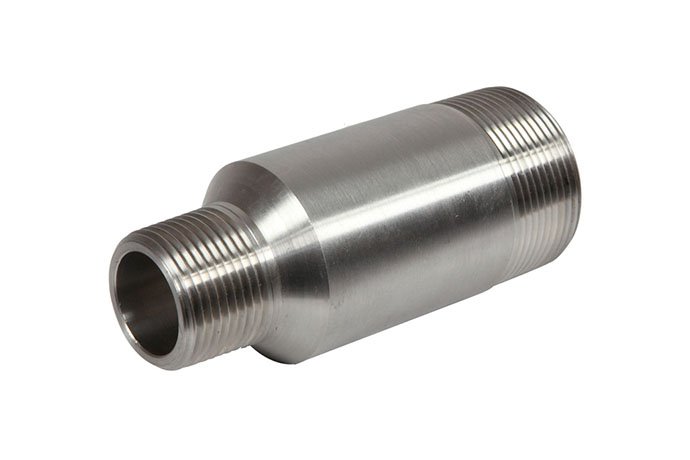

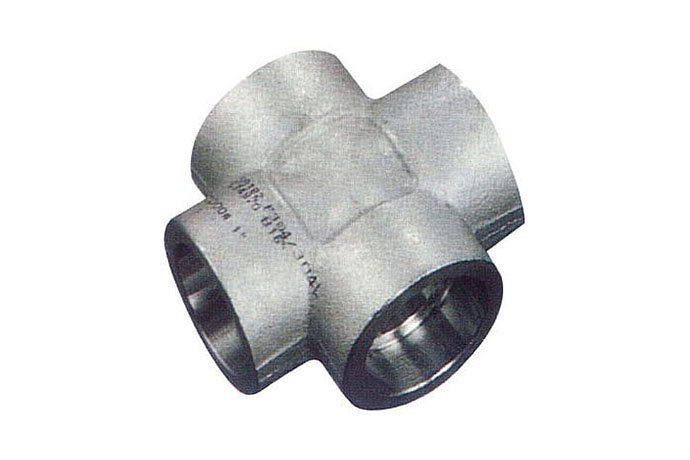

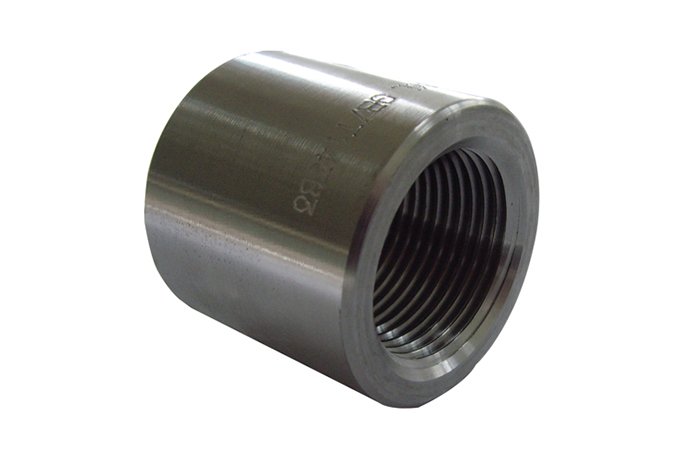

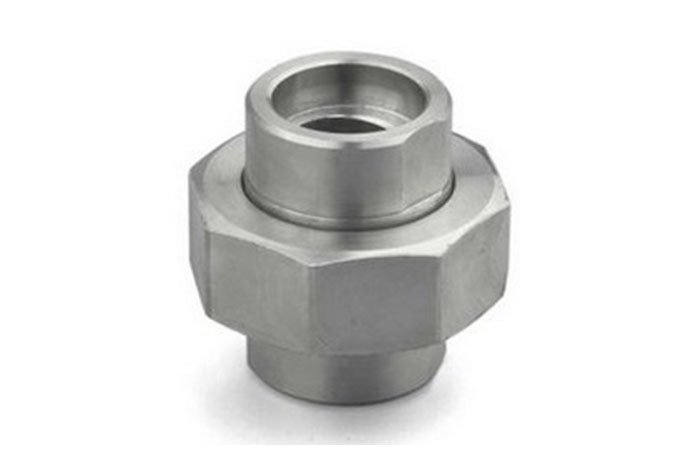

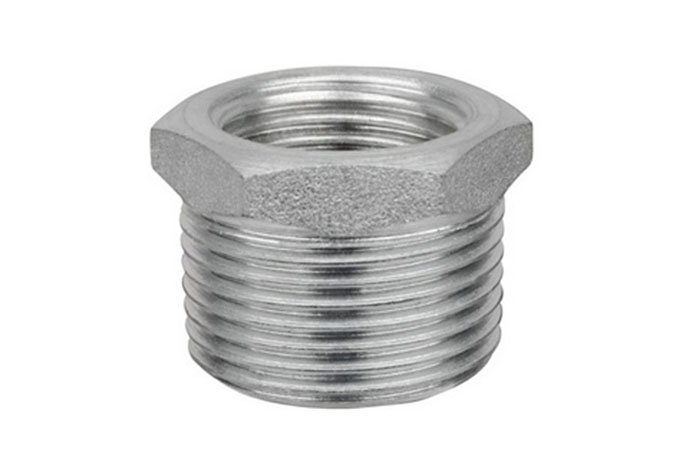

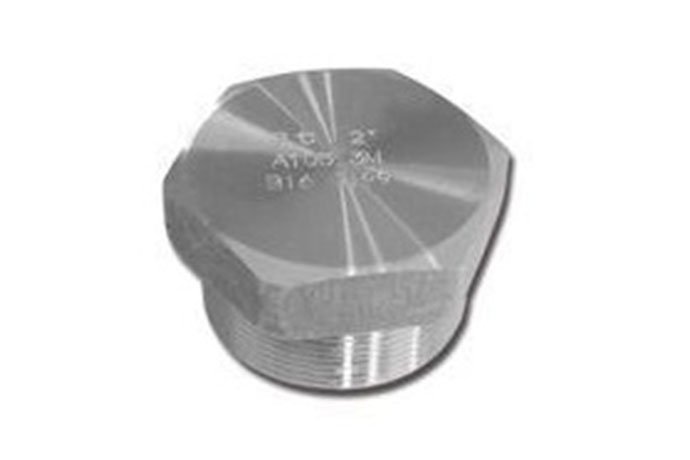

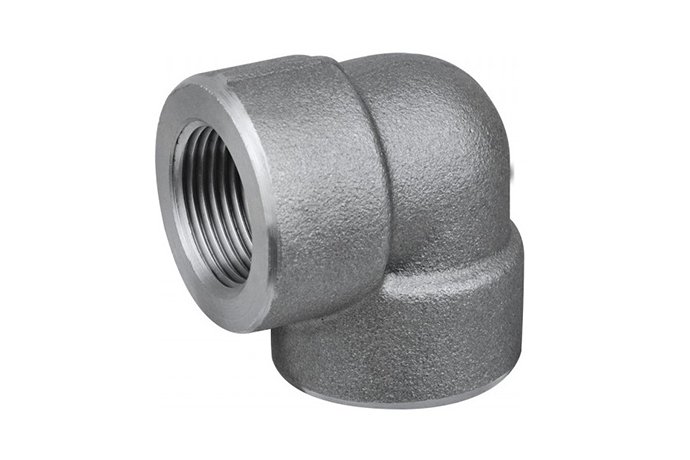

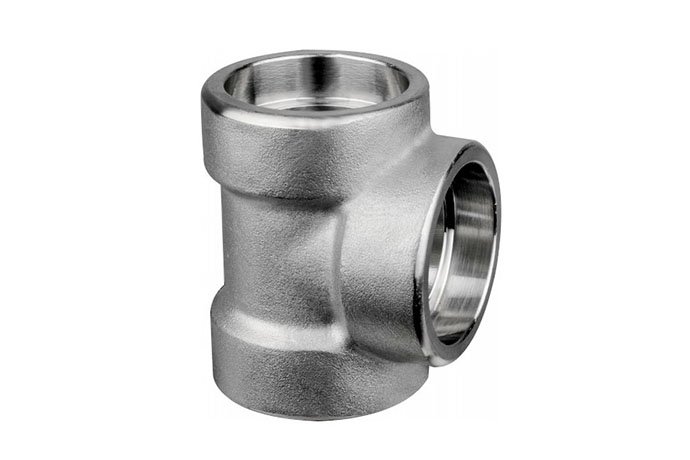

Type:Elbow, Cross, Street Elbow, Tee, Boss, Coupling, Half Coupling, Cap,Plug, Bushing, Union, Swage Nipple, Bull Plug, Reduced Insert, Pipe Nipple etc.
Connection Type:Socket-Weld and Threaded (NPT, BSP)
Rating:2000LBS, 3000LBS, 6000LBS, 9000LBS.
Marking:1.Carbon and alloy steel: marked by stamping.
2.Stainless:Marked by electro-etched or jet printed or stamped
3.3/8" under: brand only
4.1/2" to 4": marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size.
Packing:Carton/ Plywood cases


Specification

Nominal Pipe Size90 DEGREE Elbow, TEE, Cross45 DEGREE ElbowAll Fittings
Center to EndCenter to EndOutside Diameter of BandMinimum Wall ThicknessLength of Thread Min
AGDC
DNNPSSCH80 2000SCH160 3000XXS 6000SCH80 2000SCH160 3000XXS 6000SCH80 2000SCH160 3000XXS 6000SCH80 2000SCH160 3000XXS 6000BL2
61/82121251717192222253.183.186.356.46.7
81/42125281719222225333.183.36.68.110.2
103/82528331922252233383.183.516.989.110.4
151/22833382225283338463.184.098.1510.913.6
203/43338442528333846563.184.328.5312.713.9
2513844512833354656623.684.989.9314.717.3
321 1/44451603335435662753.895.2810.591718
401 1/25160643543446275844.015.5611.0717.818.4
50260648343445275841024.277.1412.091919.2
652 1/2768395525264921021215.617.6515.2923.628.9
803    86951066464791091211465.998.8416.6425.930.5
1004    1061141147979791461521526.5511.1818.6727.733
