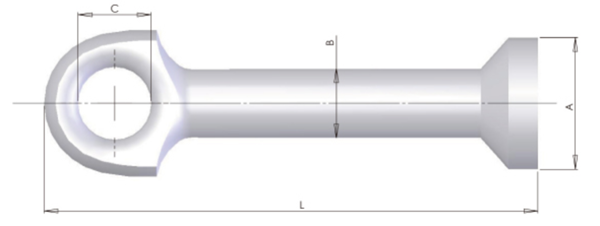

Eye Anchors

Product Code	Safe Working	Length	Pin Head	Hole Dia.
(Self Colour)	Load (Kg)	(mm)	(mm)	(mm)
O-013065	1300	65	19	9
O-025090	2500	90	26	13
O-050090	5000	90	36	18
O-050120	5000	120	36	18
O-100115	10000	115	47	25
O-100180	10000	180	47	25
O-200250	20000	250	70	37
O-320300	32000	300	88	47
The Eye Pin Anchor is used whenever it is not possible to transfer the load
through the foot. It is normally used in beams or thin concrete units.
