Check Valve 101: Understanding the Basics

January 21st 2024

Check Valve 101: Understanding the Basics

A non-return valve, also known as a Check Valve, is a type of valve designed to prevent the reverse flow of fluids. Its fundamental working principle relies on the design of the valve disc or valve cover to ensure that fluid is allowed to pass in the normal flow direction but is prevented from flowing back in the reverse direction by closing the valve.

A non-return valve, also known as a Check Valve, is a type of valve designed to prevent the reverse flow of fluids. Its fundamental working principle relies on the design of the valve disc or valve cover to ensure that fluid is allowed to pass in the normal flow direction but is prevented from flowing back in the reverse direction by closing the valve. This typically involves a valve disc or ball that automatically opens or closes based on the direction of fluid flow.

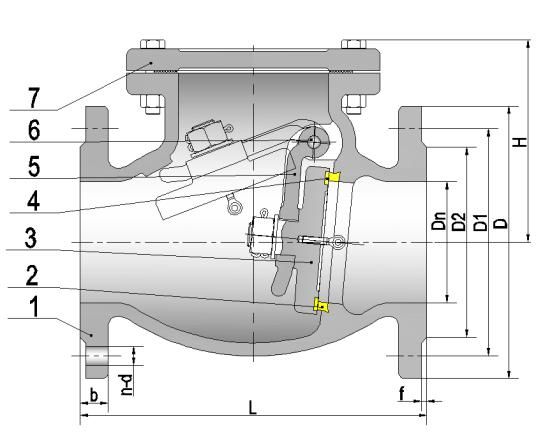

Detailed Description of Check Valve

ComponentFunctionDescription
Valve Disc or BallControls fluid flow, prevents backflowOpens during normal flow, closes during reverse flow. - May be operated by spring, gravity, or fluid dynamics.
Valve BodySurrounds the valve disc, provides a passage for the fluidMaterial chosen to withstand fluid pressure and chemical properties. - Well-designed channels ensure free fluid passage.
SpringAssists in maintaining valve stability in the closed stateHelps keep the valve closed when no fluid is flowing.
ConnectorsConnects to pipeline systems or equipmentIncludes threads, flanges, or welding components to ensure tight integration into the system.
Fluid Dynamic ClosureUses fluid flow pressure to open the valve and close during backflowFlow direction determines the valve's open or closed state.
Gravity or Spring ClosureAssisted by gravity or spring to ensure reliable closure in different conditionsEnsures the valve reliably closes in various operating conditions.

Backflow Prevention Principles:

  1. Fluid Dynamic Closure: The flow direction of the fluid determines the valve's state—open during forward flow and closed during reverse flow.

  2. Gravity or Spring Closure: Assisted by gravity or a spring, ensuring the valve remains closed when there is no fluid flow.


Applications:

  1. Water Treatment Systems: Prevents wastewater from flowing back into the water supply system.

  2. Oil and Gas Industry: Prevents backflow in pipelines, protecting equipment and pipelines.

  3. Chemical Engineering: Prevents mixing of different chemicals during the manufacturing process.

  4. Water Supply and Drainage Systems: Prevents sewage from flowing back into the clean water system.

 Additional information can be found in this article.


In summary, non-return valves play a crucial role in ensuring proper fluid flow within a system while preventing the mixing and contamination of different media. If you would like to learn more about wholesale prices and applications of Check Valves, please feel free to contact us.
