Ring Clutch, Precasting Concrete Lifting Ring Clutch Manufacturer

Ring Clutch - Precasting Concrete Lifting Ring Clutch

Precast concrete lifting clutches are specialized lifting devices used to safely handle and transport precast concrete elements. These clutches are designed to work with lifting anchors embedded in the concrete, ensuring secure attachment and efficient lifting operations.

Brand : BAFAW

Product origin : China

Delivery time : 30 Days

Supply capacity : 100000000 Piece/Pieces Per Year

Product Introduction

Mechanical Properties

Property	Specification
Tensile Strength	High tensile strength to handle heavy loads
Durability	Heat-treated for enhanced durability and toughness
Corrosion Resistance	Surface treated to prevent corrosion and extend service life

Types of Lifting Clutches

Type	Description
Ring Clutch	Designed for use with spherical head anchors
Dog Bone Clutch	Suitable for use with dog bone style anchors
Eye Anchor Clutch	Used with eye anchors for a secure lift
Specialty Clutches	Custom designs for specific lifting applications

Application Fields

Industry	Example Applications
Construction	Lifting and handling of precast concrete panels, beams, columns, and other structural elements
Infrastructure	Transportation and installation of precast concrete bridge components, barriers, and culverts
Industrial	Handling of heavy precast concrete elements in manufacturing facilities
Marine	Lifting and placement of precast concrete marine structures

Quality Assurance

Category	Description
Standards	Complies with industry standards such as EN 13155, AS 3850, and ISO 9001
Inspection Methods	Visual Inspection, Dimensional Inspection
	Non-Destructive Testing (NDT): Magnetic Particle, Ultrasonic
Mechanical Testing	Tensile, Hardness
Load Testing	Proof load testing to ensure safety and reliability

Ordering Information

Quantity: Provide estimated order quantity.
Delivery: Specify desired lead time and delivery schedule.

If you need more detailed information or assistance with a particular clutch, please provide the necessary specifications and requirements.

Customer First

Comprehensive product customization
Secondary Quality Testing Before Leaving The Factory
Increased Capacity Based on Customer Demand - Fast Delivery
Provide a Customized Service Process That Dits The Needs of Our Customer

Inquiry Now

*Name:
Tel:
*E-mail:
Company:
*Message:

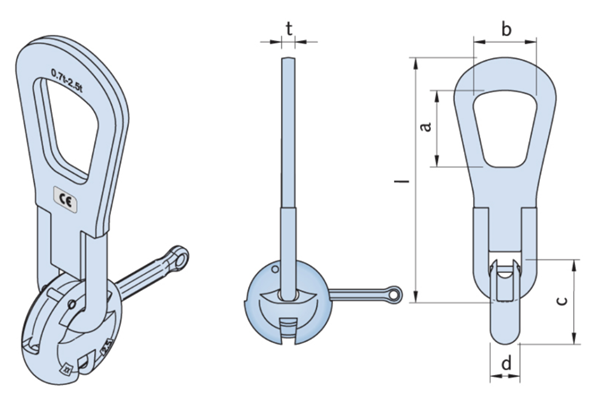

Product Code	Load Group	Height	Description
	(Kg)	(mm)
RA-R1025	700 - 2500	259	2.5 Ton Ring Clutch
RA-R1050	3000 - 5000	325	5.0 Ton Ring Clutch
RA-R10100	5300 - 10000	431	10.0 Ton Ring Clutch
RA-R10260	12500 - 26000	620	26.0 Ton Ring Clutch
Standard lifting clutch for all anchors in the spread anchor system.
