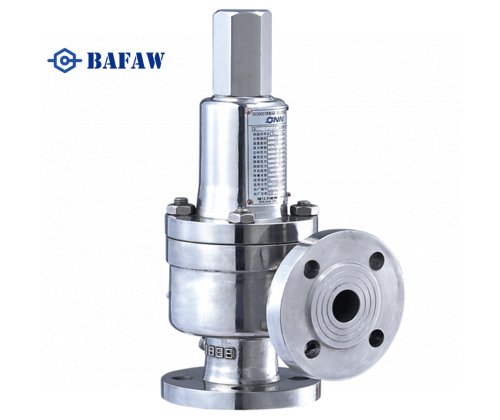

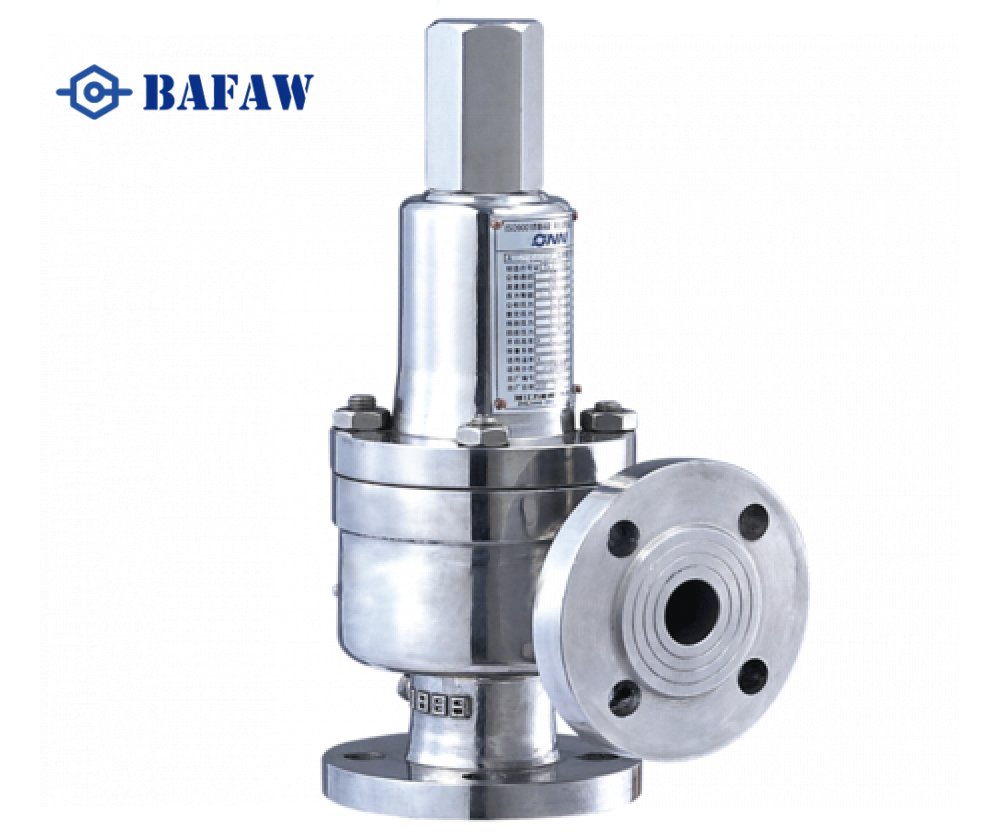

A42Y-160/320 series

A42Y-160/320 series

Here’s the English translation of the safety valve description:

Standards: ANSI, ASME, API, BS, DIN, and other international standards
Type: Spring-loaded, safety valve, valve
Size: 1/2" - 24" (DN15-DN600)
Material: Carbon steel, stainless steel, chromium-molybdenum steel, brass, aluminum alloys, etc.
Pressure: Maximum working pressure customizable based on model and requirements
Operation Mode: Automatic pressure release, suitable for high-pressure systems, protecting equipment from overpressure damage

This type of safety valve is commonly used in steam, gas, liquid, and other fluid systems to automatically open when pressure exceeds a safe limit, releasing excess pressure and thus ensuring the safe operation of pipelines, vessels, and systems.

TECHNICAL REQUIREMENTS:

Design and Manufacture: Conform to ASME, API, BS, DIN standards
Flange dimensions: Conform to EN1092-1/ANSI B16.5
Face to Face dimensions: Conform to EN 558-1, DIN3202 F4
Testing: Conform to EN 12266-1, API 598
Driving mode: Manual, pneumatic actuator, electric actuator

The Safety Valve is widely used in high-pressure systems, including steam, gas, oil pipelines, and other industrial applications. It is designed to automatically open and release excess pressure, protecting vessels, pipelines, and equipment from overpressure damage. It features reliable, stable performance with a simple and durable structure.

Valve Warranty: 2 years, unconditional replacement for quality issues.

APPLICATION:

A42Y-160/320 is suitable for equipment and pipelines carrying media such as air and nitrogen-hydrogen mixtures at working temperatures ≤200°C. A42Y-160P/320P and A42Y-160R/320R are suitable for equipment and pipelines carrying corrosive media at working temperatures ≤200°C, serving as overpressure protection devices.

Product Introduction

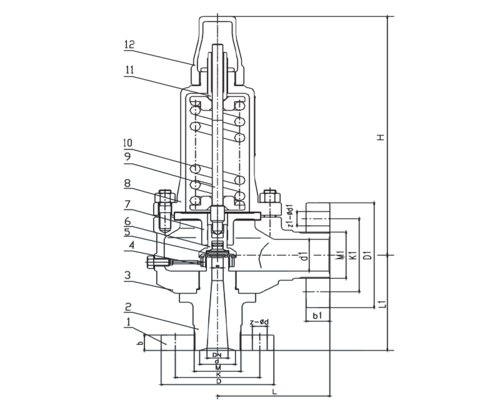

MAIN DIMENSIONS:

Model	Nominal diameter DN(mm)	Dimensions (mm)
Model	Nominal diameter DN(mm)	d₀	d	M	K	D	Z-Φd	b	d₁	M'	K₁	D₁	Z₁-Φd₁	b₁	L	L₁	H
A42Y-160	15	8	20	M42 x 2	60	95	3-18	20	32	M42 x 2	80	115	4-18	22	95	100	220
	20	8	27	M33 x 2	68	105	3-18	20	32	M42 x 2	80	115	4-18	22	95	100	220
	25	14	28	M33 x 2	68	105	3-18	20	32	M42 x 2	80	115	4-18	22	95	100	280
	32	15	37	M42 x 2	80	115	4-18	22	50	M64 x 3	115	165	6-26	32	150	150	390
	40	20	47	M52 x 2	115	165	6-26	28	65	M80 x 3	145	200	6-29	40	165	165	495
	50	25	59	M64 x 3	115	165	6-26	32	80	M100 x 3	170	25	6-33	50	180	180	400
A42Y-320	15	8	27	M33 x 2	68	105	3-18	20	29	M42 x 2	80	115	4-18	22	95	100	220
	20	8	30	M36 x 2	75	110	3-18	22	29	M42 x 2	80	115	4-18	22	95	100	220
	25	14	35	M42 x 2	80	115	4-18	22	32	M42 x 2	80	115	4-18	22	95	100	280
	32	15	41	M48 x 2	95	135	4-22	25	50	M64 x 3	115	165	8-26	32	150	150	390
	40	20	58	M64 x 3	115	165	6-26	32	65	M80 x 3	145	200	6-29	40	165	165	495
	50	25	70	M80 x 3	145	200	6-29	40	80	M100 x 3	170	225	6-33	50	180	180	400
A42Y-400	32	15	41	M48 x 2	95	135	4-22	25	50	M64 x 3	115	165	6-26	32	150	150	397
