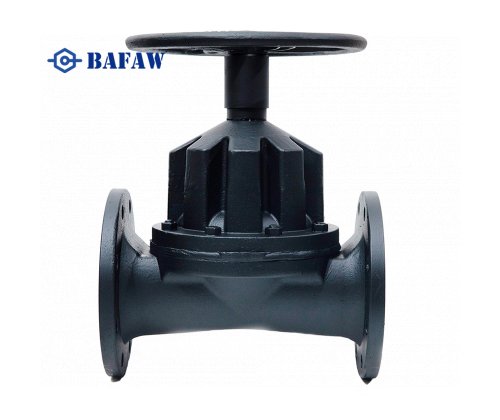

diaphragm valve

Working pressure:

DN50-DN125: 1.0 MPa

DN150-DN200: 0.6 MPa

DN250-DN300: 0.4 MPa

Working temperature:

NR: -20 °C to +60 °C

3. Face-to-face dimensions: EN588-1

4. Flange connections in accordance with EN1092-2, BS4504, etc.

5. Testing: DIN3230, API598

6. Medium: Cement, clay, coal ash, granular fertilizer, solid fluids, fresh water, seawater, inorganic acids, and alkaline liquids, etc.

Product Introduction

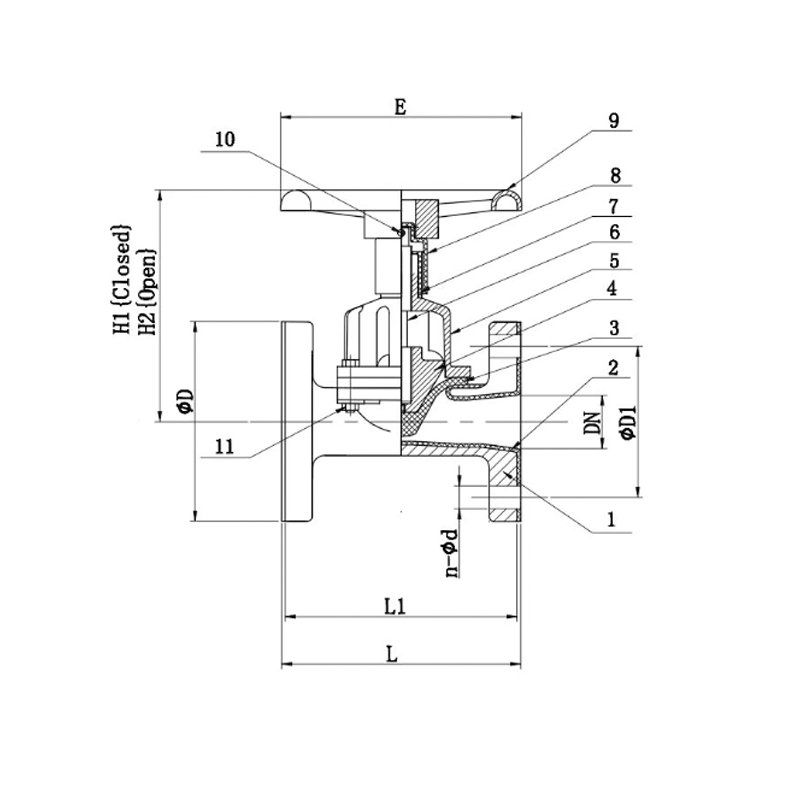

	Parts	Materials
1	Body	GG25
2	Lining	NR
3	Diaphragm	NR
4	Disc	GG25
5	Valve cover	GG25
6	Shaft	Steel
7	Sleeve	ABS
8	Sleeve	ABS
9	Handle	GGG40
10	Pin	Steel
11	Bolt	Steel

DN(mm)	50	65	80	100	125	150	200
L(mm)	194	216	258	309	362	412	527
L1(mm)	188	222	252	301	354	404	517
Φe (mm)	165	185	198	220	250	283	335
Φd(mm)(EN10922) PN10 PN16	125	145	160	180	210	240	295
