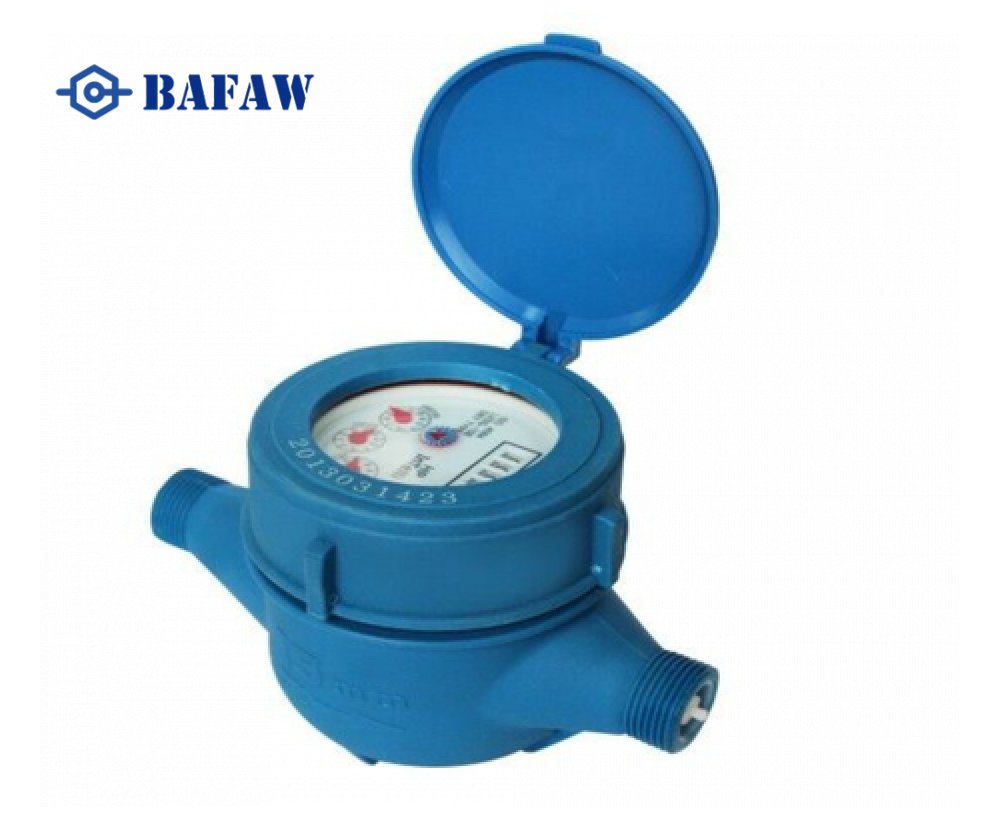

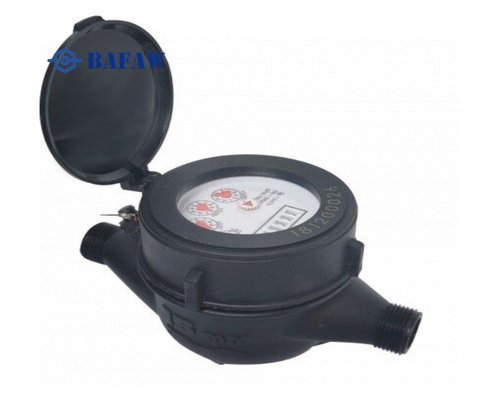

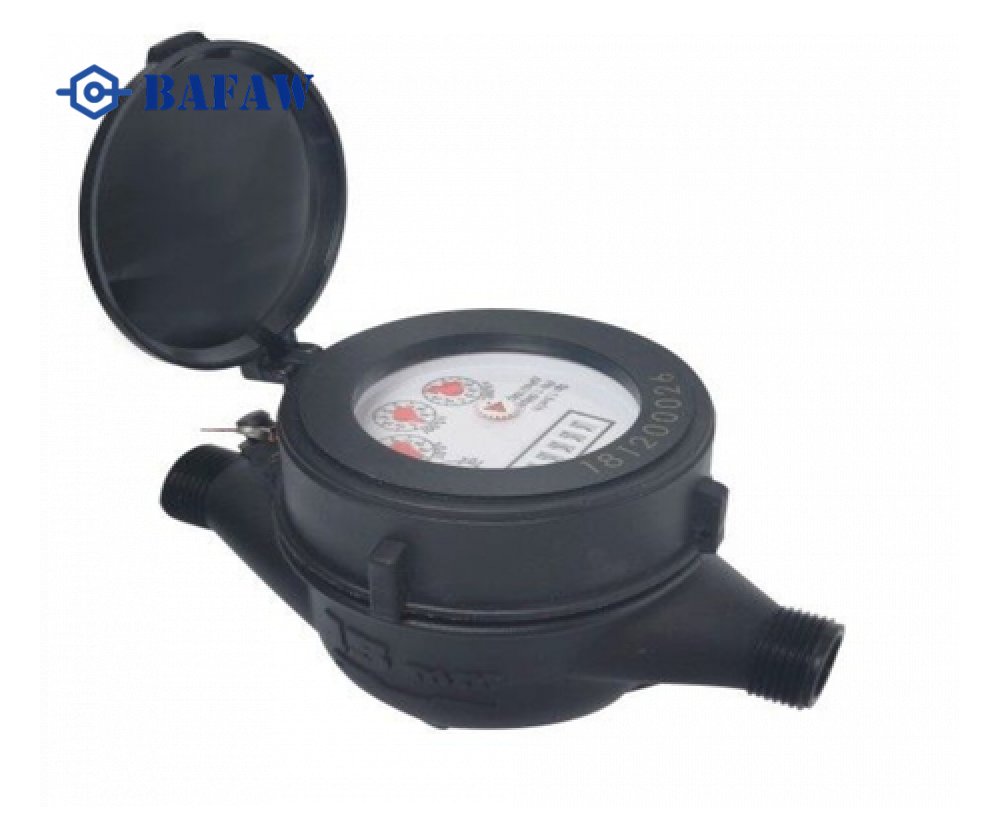

Plastic cold water meter

Model: LXSG-15-50

APPLICATION:

The range of water meter is used to measure the total quantity of cold potable water, consumed in household or a resident unit, passing through the pipeline.

Features:

•Multi-jet

•Dry type / Wet type/Liquid Sealed( for selecting)

• Anti-magnetic, good anti-freezing property

•The adoption of mechanism with vacuum sealed keeping the reading clear in long term operation.

•Measuring accuracy is up to ISO4064 CLASS B

•High quality materials, steady & reliable characteristic

•Material: Nylon (PA)

Working Conditions

Cold water temperature≤35°C

Hot water temperature≤90°C

Water pressure ≤1.0Mpa/1.6Mpa

Product Introduction

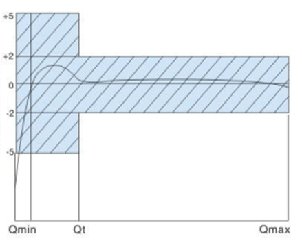

HEAD LOSS CURVES	FLOW ERROR CURVE

MAIN TECHNICAL DATA

Meter Size (mm)	CLASS	Qmax(m³/h)	Qn(m³/h)	Qt(m³/h)	Qmin(m³/h)	Min Reading	Max Reading
15	B	3.125	2.5	0.05	0.03125	0.0001	99999
20	B	5	4	0.08	0.05	0.0001	99999
25	B	7.875	6.3	0.126	0.07875	0.0001	99999
32	B	12.5	10	0.2	0.125	0.0001	99999
40	B	20	16	0.32	0.2	0.001	99999
50	B	31.25	25	3.15	0.5	0.001	99999

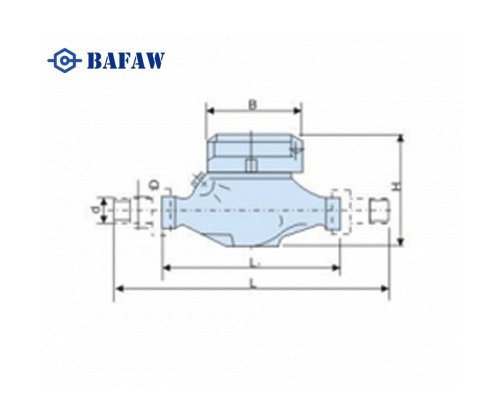

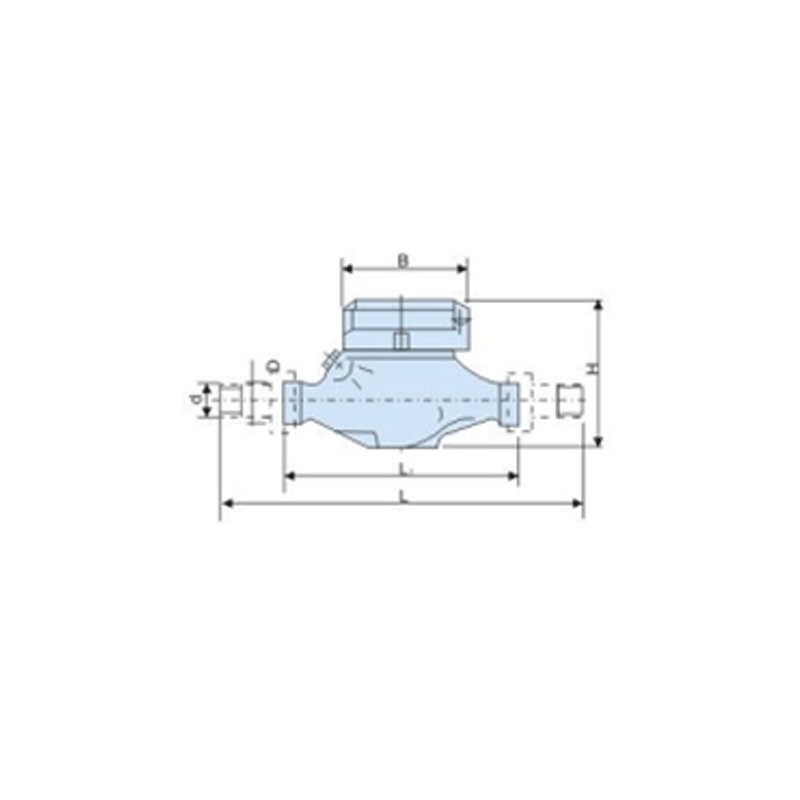

DIMENSIONS AND WEIGHT

Meter size	DN	15	20	25	32	40	50
Length	L1(mm)	165	195	225	230	245	300
Width	B(mm)	98	98	103	103	125	135
Height	H(mm)	114	114	114	114	144	155
Connecting thread	d	R1/2	R3/4	R1	R1-1/4	R1-1/2	R2
Connecting thread	D	G3/4	G1	G1-1/4	G1-1/2	G2	G2-1/2
Weight	kg	0.6	0.7	1.0	1.5	2	2.5
