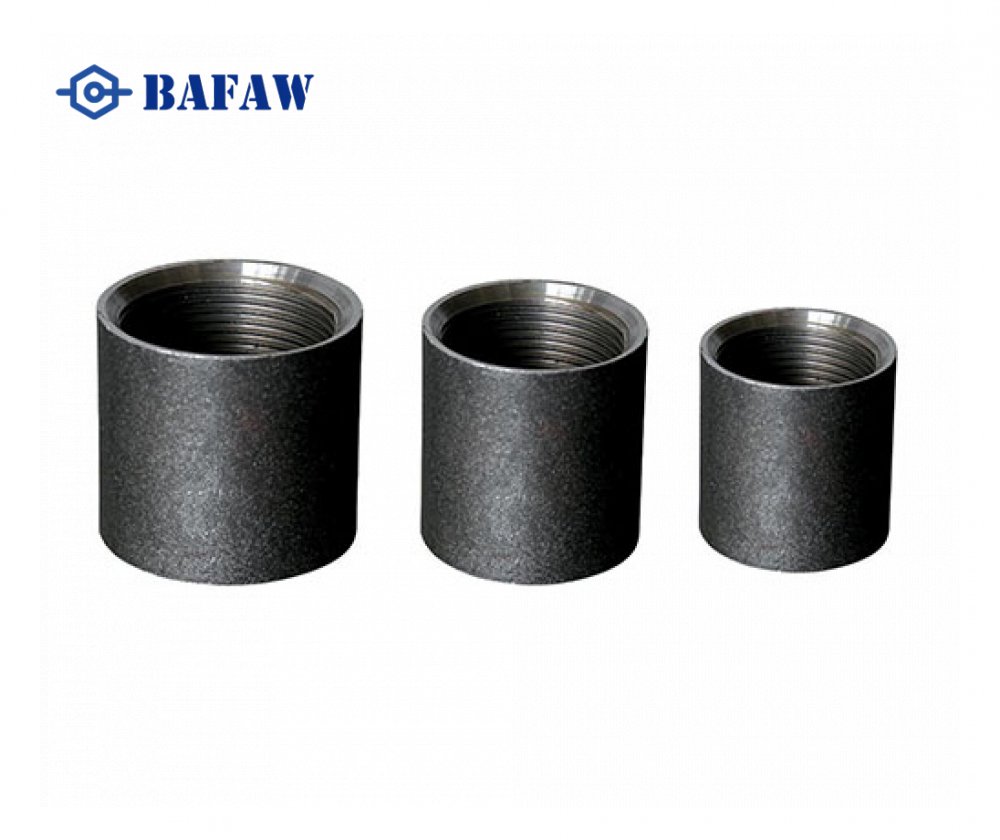

Black Steel Merchant Coupling

ASTM A865     AMERICAN STANDARD STEEL MERCHANT COUPLING

SIZE 1/8 1/43/81/23/411 1/41 1/2
Outside Diam0.5630.7190.8751.0631.3131.5761.92.2
Length 3/41 1/81 1/81 1/21  9/161 15/1622
ThreadsNPSLNPSLNPSLNPSLNPSLNPSLNPSLNPSL









SIZE 22 1/233 1/2456
Outside Diam2.753.254   4.6255   6.2967.39
Length2  1/163  1/163  3/163  5/163  7/163 11/163 15/16
ThreadsNPTNPTNPTNPTNPTNPTNPT



BS EN10241 BRITISH STANDARD STEEL  MERCHANT COUPLING

SIZE 810152025324050
Min. Outside Diam18.5222732.539.5495668
Min. Length2728373946515160
Size6580100125150


Min. Outside Diam8498124151178


Min. Length6975879696




DIN 2999 DIN STANDARD STEEL  MERCHANT COUPLING

Size681015202532
StandardMin. Outside Dia1518.521.326.631.839.548.3

Length(mm)17252634364348
HalfMin. Outside Dia1518.521.326.631.839.548.3

Length(mm)8111215172022









Size40506580100125150
StandardMin. Outside Dia54.566.28295121.4146.3173.3

Length(mm)48566571839292
HalfMin. Outside Dia54.56884.298.4124149177

Length(mm)22263034404444
