Material:stainless steel ,brass , bronze
Size:1/4’’-4’’
Thread:NPT, BSP, DIN2999, BSPT
Working pressure1000psi , 2000psi
Temperature range-20-220℃
Medium Water, oil, gas and other medium
Type:2-way 3-way 1-way

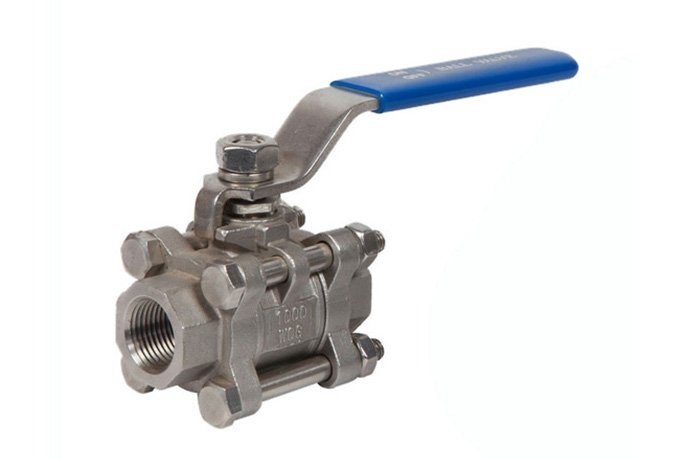

1. Three piece ball valve.
2. Full bore.
3. Size: 1/4"-3"
4. Anti-static device.
5. Working Pressure: 1000WOG , 2000WOG
6. Threaded End: BSPT, NPT, DIN2999
VALVE WARRANTY 2 YEARS, UNCONDITIONAL REPLACEMENT FOR QUALITY PROBLEMS.
CF8M ball valves are an essential component in various industrial applications due to their superior performance, durability, and corrosion resistance. Understanding the unique properties and benefits of CF8M ball valves can help businesses select the right valve for their specific needs.
A CF8M ball valve is a type of valve made from CF8M stainless steel, which is a variant of the 316 stainless steel family. The "CF8M" designation indicates the specific alloy composition:
C: Indicates it is a cast material
F: Indicates it is a ferritic/austenitic stainless steel
8: Indicates it contains 18% chromium and 8% nickel
M: Indicates it contains molybdenum, which enhances corrosion resistance
Main parts and materials | |
Part name | Materials |
Body | WCB CF8 CF8M |
Bonnet | WCB CF8 CF8M |
Ball | WCB CF8M |
Valve seat | PTFE |
Bolt | A193-B8 A193-B7 |
Stem | SS304 SS316 |
Seal | PTFE |
Packing | PTFE |
Bushing | 50%SS+50%PTFE |
Gland | PLASTIC |
Butterfly shrapnel | SS304 |
Nut | A194-8 SS304 |
Localization piece | SS304 |
Main dimensions | |||||||||||
SIZE | d | L | LE | LF | H | E1 | E2 | G | U1 | U2 | A |
1/2" | 15 | 75 | 225 | 130 | 72 | 36 | 42 | 9 | 6 | 6 | 8 |
3/4" | 20 | 82 | 225 | 150 | 80 | 36 | 50 | 9 | 6 | 7 | 9 |
1" | 25 | 90 | 245 | 160 | 90 | 42 | 50 | 11 | 6 | 7 | 11 |
1-1/4" | 31.8 | 112 | 255 | 180 | 95 | 42 | 70 | 11 | 6 | 9 | 11 |
1-1/2" | 38.1 | 120 | 260 | 200 | 106 | 50 | 70 | 14 | 7 | 9 | 14 |
2" | 50 | 145 | 275 | 230 | 113 | 50 | 70 | 14 | 7 | 9 | 14 |
2-1/2" | 65 | 185 | 334 | 290 | 149 | 70 | 102 | 17 | 9 | 11 | 17 |
3" | 80 | 210 | 354 | 310 | 159 | 70 | 102 | 17 | 9 | 11 | 17 |
4" | 100 | 266 | 365 | 350 | 205 | 102 | 22 | 11 | 22 |
SIZE | d | W | D | C | R | T | F | N | h | L1 | B1 | B2 | B3 |
1/2" | 15 | 145 | 95 | 65 | 45 | 16 | 2 | 4 | 14 | 10 | 21.8 | 15.8 | 22 |
3/4" | 20 | 145 | 105 | 75 | 58 | 18 | 2 | 4 | 14 | 13 | 27.3 | 20.9 | 28 |
1" | 25 | 175 | 115 | 85 | 68 | 18 | 2 | 4 | 14 | 13 | 34 | 26.7 | 34 |
1-1/4" | 31.8 | 175 | 140 | 100 | 78 | 18 | 2 | 4 | 18 | 16 | 42.8 | 35.1 | 43 |
1-1/2" | 38.1 | 194 | 150 | 110 | 88 | 18 | 3 | 4 | 18 | 16 | 48.9 | 40.9 | 50 |
2" | 50 | 194 | 165 | 125 | 102 | 20 | 3 | 4 | 18 | 17 | 61.4 | 52.5 | 61 |
2-1/2" | 65 | 265 | 185 | 145 | 122 | 22 | 3 | 8 | 18 | 17 | 74 | 62.7 | 76 |
3" | 80 | 265 | 200 | 160 | 138 | 24 | 3 | 8 | 18 | 17 | 90 | 70.8 | 92 |
4" | 100 | 400 | 235 | 190 | 162 | 24 | 3 | 8 | 22 | 20 | 115.4 | 102.4 | 115 |
CF8M ball valves are a crucial component in many industrial applications, offering superior corrosion resistance, durability, and reliability. Their ability to perform under extreme conditions makes them a preferred choice for industries ranging from chemical processing to oil and gas, water treatment, pharmaceuticals, and food and beverage. By understanding the unique features and benefits of CF8M ball valves, businesses can make informed decisions and select the best valve solutions for their needs.
If you have any more specific questions or need further information about CF8M ball valves, feel free to ask!
