1. Pressure: 150lb, 200lb, 300lb
2. Media: seawater, oil, liquefied gas
3. Temperature: water below 120℃，oil, gas, steam below 220℃
4. End connection std: G, RC, RP, NPT, BSPT, BSP, DIN259/2999

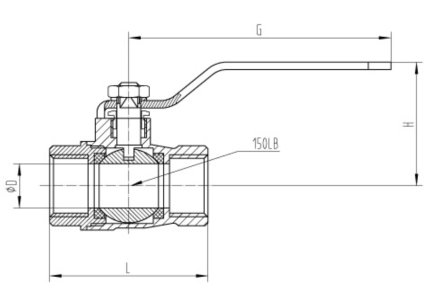

| DN | SIZE | D | L | H | G |  |
| DN15 | 1-2 | 14 | 54 | 45 | 95 | |
| DN20 | 3-4 | 18 | 64.5 | 50 | 110 | |
| DN25 | 1 | 23.5 | 70.5 | 60 | 110 | |
| DN32 | 1 1/4 | 29 | 83.5 | 65 | 140 | |
| DN40 | 1 1/2 | 35 | 93.5 | 70 | 140 | |
| DN50 | 2 | 45 | 119 | 85 | 160 | |
| DN65 | 2 1/2 | 61 | 162 | 130 | 224 | |
| DN80 | 3 | 72 | 189 | 148 | 224 | |
| DN100 | 4 | 88 | 260 | 180 | 295 |
