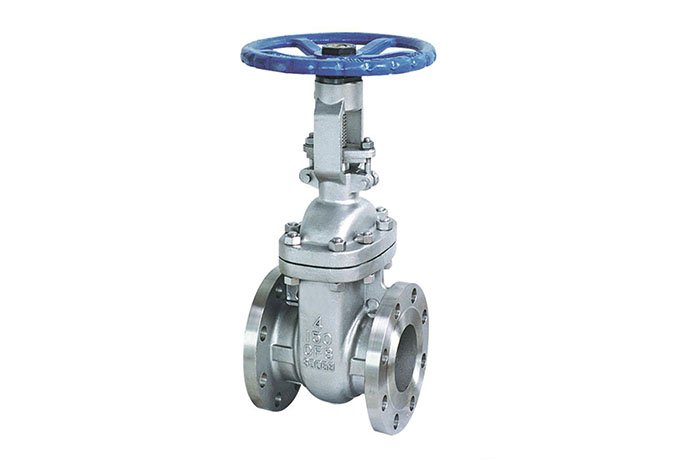

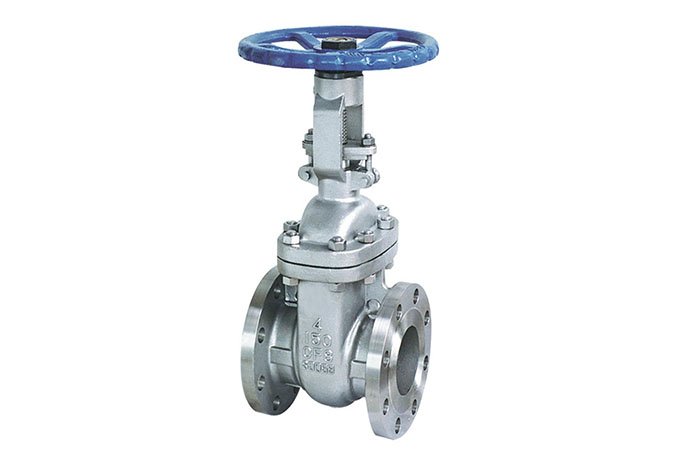

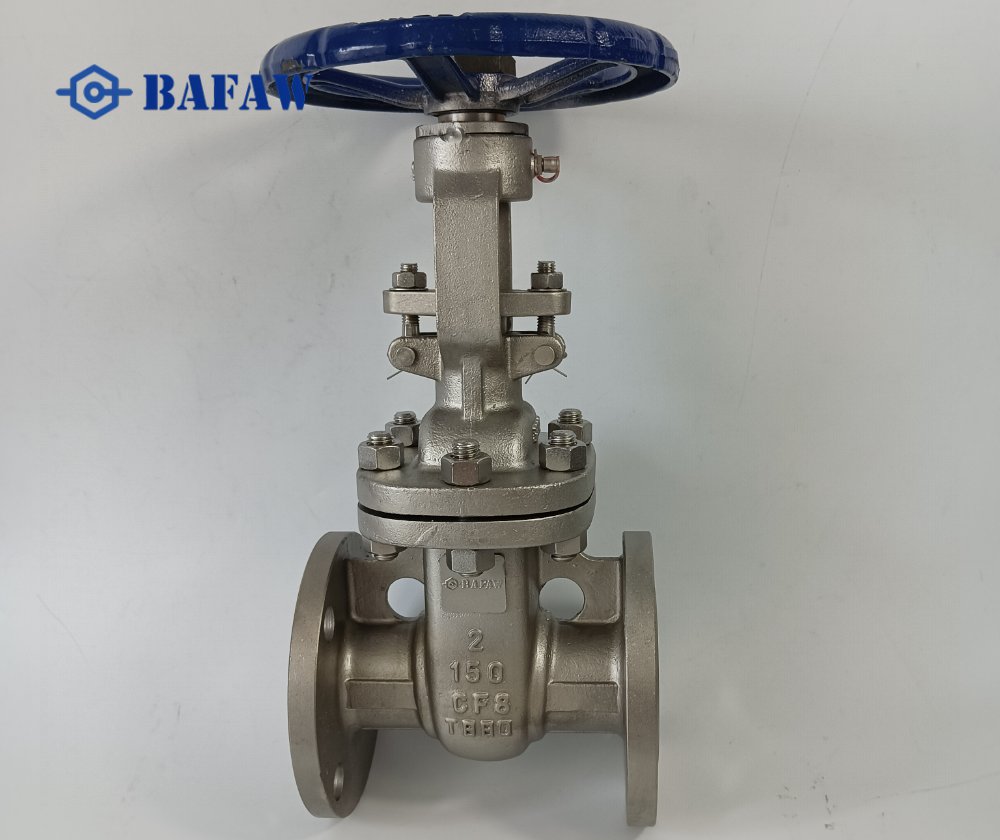

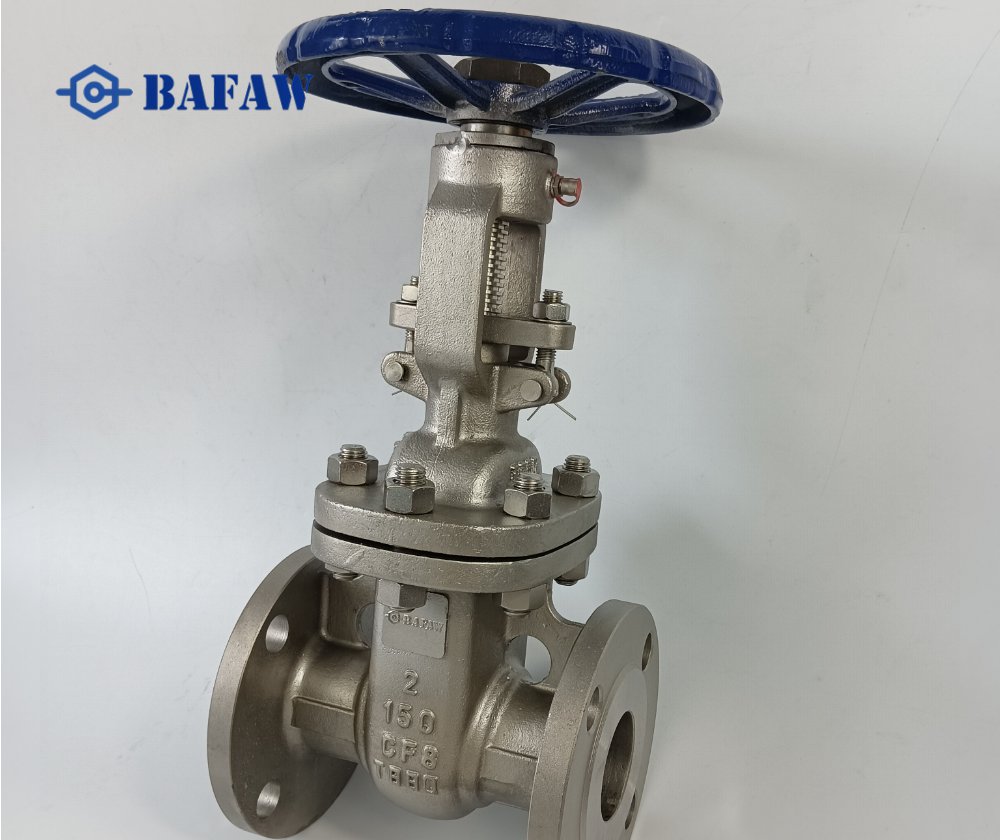

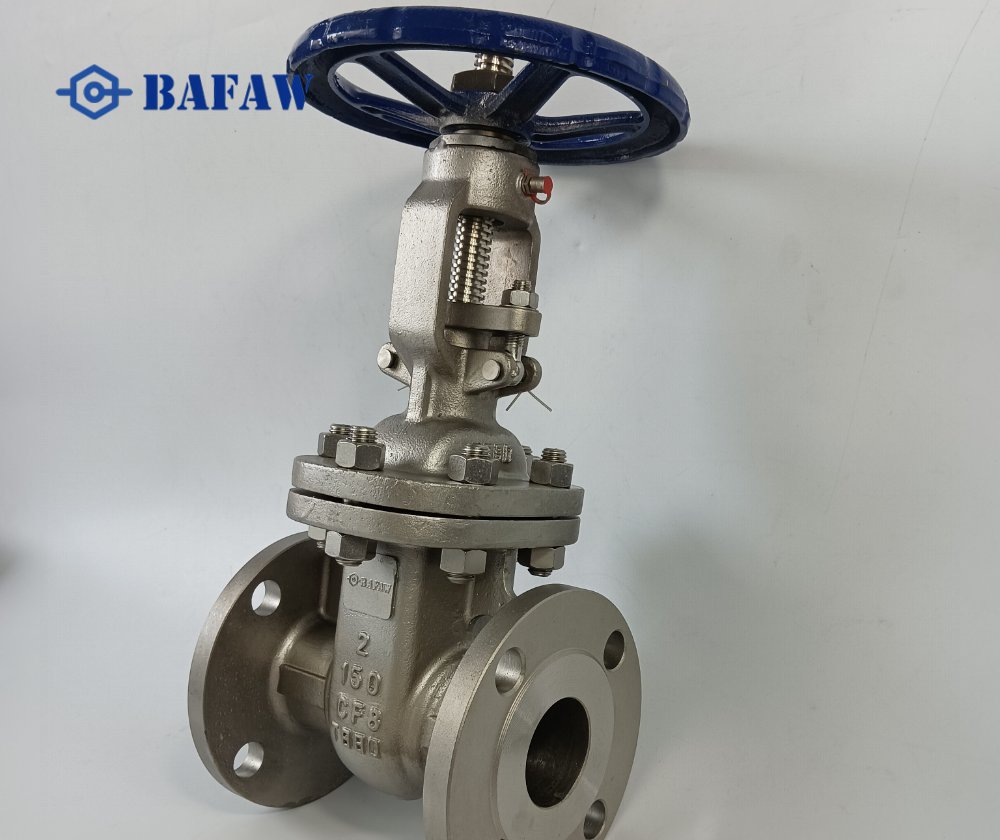

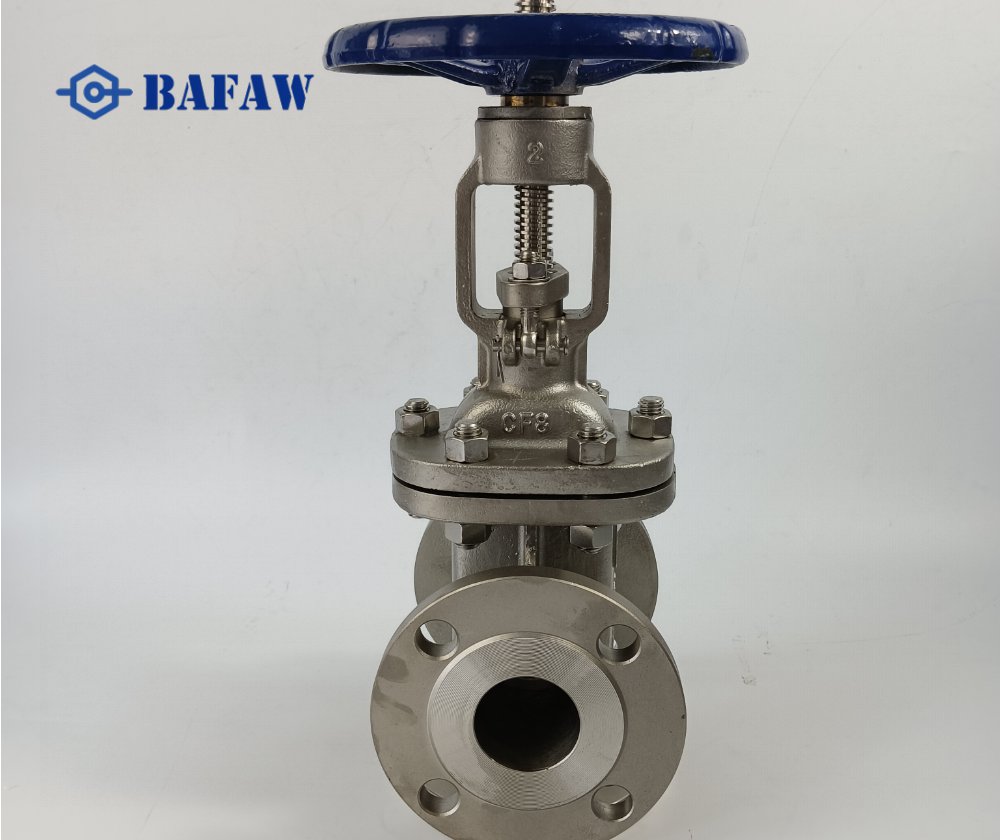

OS&Y Gate Valve, OS AND Y Gate Valve Parts Manufacturer

Applicable Standards:

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to face (end to end): ANSI B16.10, API 6D

Flanged connection: 2"~24" to ANSI B16.5, 22", 26"~36" to MSS-SP-44 to API605 on Request

Test and inspection: API 598, API 6D

Butt welded end: ANSI B16.5

The company has ISO, CE certifications, the products are used in petrochemicals, metallurgy, thermal power generation, urban water supply, and other industries.
API600 OS&Y Cast Steel Gate Valve is suitable for high temperature, high pressure, corrosion-resistant media control, the operation can be manual, electric, or pneumatic mode of operation to meet the automatic control.
VALVE WARRANTY 2 YEARS, UNCONDITIONAL REPLACEMENT FOR QUALITY PROBLEMS.

Product Introduction

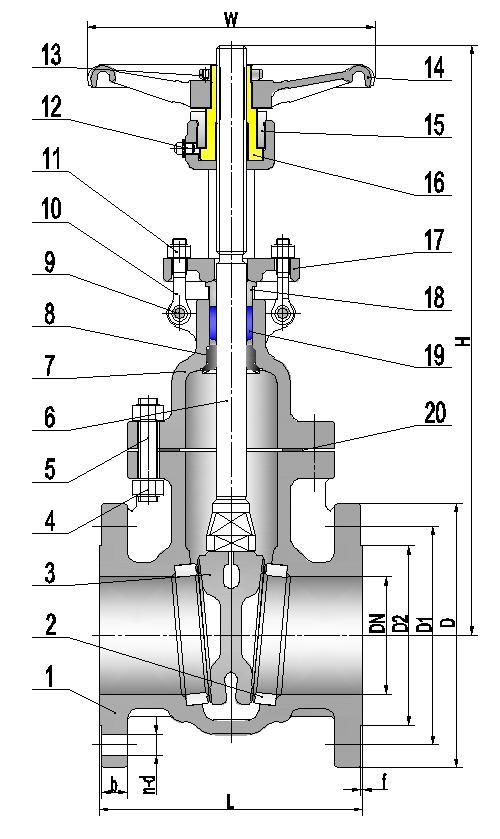

NO.	PART	ASTM Material
		WCB	LCB	WC6	CF8(M)	CF3(M)
1	BODY	A216 WCB	A352 LCB	A217 WC6	A351 CF8(M)	A351 CF3(M)
2	GATE	A216 WCB+13Cr	A352 LCB+13Cr	A217 WC6+STL	A351 CF8(M)	A351 CF3(M)
3	SEAT	A105+13Cr	A105+13Cr	A217 WC6+STL	A351 CF8(M)+STL6	A351 CF3(M)+STL6
4	STEM	A182 F6	A182 F6	A182 F6	A182 F304/F316	A182 F304L/F316L
5	BONNET BOLT	A193 B7	A320 L7	A193 B16	A193 B8(M)	A193 B8(M)
6	BONNET NUT	A194 2H	A194 7	A194 4	A194 8(M)	A194 8(M)
7	GASKET	SS304+GRAPHITE			PTFE/SS304+GRAPHITE	PTFE/SS316+GRAPHITE
8	BONNET	A216 WCB	A352 LCB	A217 WC6	A351 CF8(M)	A351 CF3(M)
9	BACKSEAT	A182 F6	A182 F6	A182 F6	-	-
10	PACKING	FLEXIBLE GRAPHITE			PTFE/FLEXIBLE GRAPHITE
11	GLAND	A182 F6	A182 F6	A182 F6	A182 F304	A182 F304L/F316L
12	GLAND FLANGE	A216 WCB	A352 LCB	A217 WC6	A351 CF8(M)	A351 CF3(M)
13	GLAND EYEBOLT	A193 B7			A193 B8	A193 B8
14	NUT	A194 2H			A194 8	A194 8
15	PIN	AISI 1025			AISI 1025
16	STEM NUT	BRONZE			BRONZE
17	HANDWHEEL NUT	AISI 1035			AISI 1035
18	SCREW	ASTM A36			ASTM A36
19	HANDWHEEL	A536 60-40-18			A536 60-40-18
20	BEARING GLAND	AISI 1035			AISI 1035
21	GREASE NIPPLE	BRASS			BRASS
22	NAMEPLATE	SS304			SS304

Dimensions data(mm)

Dimensions (mm) and weight for ANSI Class 150

Size		inch	2	2/1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
L-RF		mm	178	191	203	229	267	292	330	356	381	406	432	457	508	559	610	610	710	762	711
L1-BW		mm	216	241	283	305	403	419	457	502	572	610	660	711	813	864	914	914	965	1016	1016
L2-RTJ		mm	191	203	216	241	279	305	343	368	394	419	445	470	521	559	610	610	710	762	711
H		mm	400	490	510	585	795	1015	1230	1465	1755	2030	2210	2510	2880	2930	3150	3200	3450	3600	3735
W		mm	200	200	250	300	350	350	400	450	500	500	600	750	750	915	915	915	1000	1000	1000
Weight	RF	kg	18	28	30	50	85	128	220	310	450	550	700	810	1130	1680	2230	2780	2860	3050	3700
	RTJ	kg	15	22	26	40	77	118	200	290	435	510	650	880	1100	1800	2200	2650	2950	3250	3520
	BW	kg	20	29	37	56	84	138	210	310	450	565	740	927	1125	1700	2235	2800	2900	3070	3750

Dimensions (mm) and weight for ANSI Class 300

Size		inch	2	2/1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
L-RF		mm	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1626	1727
L1-BW
L2-RTJ		mm	232	257	298	321	419	435	473	518	778	854	930	1010	1165	1270	1372	1422	1553	1654	1756
H		mm	470	525	533	610	845	1050	1295	1600	1830	2035	2195	2470	2900	3100	3360	3650	3700	3750	3800
W		mm	200	200	250	300	350	350	400	450	500	500	600	750	750	915	915	915	1000	1000	1000
Weight	RF	kg	24	44	48	73	145	226	350	580	715	1050	1235	1655	2320	2860	3275	4230	4572	4850	5240
	RTJ
	BW	kg	20	35	37	54	110	174	285	495	615	940	1090	1500	2100	2580	3300	4000	4350	4510	4895

Dimensions (mm) and weight for ANSI Class 600

Size		inch	2	2/1/2	3	4	6?	8	10	12	14	16	18	20	24	26	28	30	32	34	36
L-RF		mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	1930	2083
L1-BW
L2-RTJ		mm	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	1664	1794	1946	2099
H		mm	495	550	615	735	1005	1245	1480	1730	1915	2050	2260	2620	2900	3075	3238	3600	3940	4250	4400
W		mm	200	250	300	350	450	500	600	750	850	850	960	960	1000	1000	1250	1250	1500	1650	1800
Weight	RF	kg	35	55	72	126	365	444	700	940	1310	1610	2070	2405	3810	4380	4910	5240	6835	7430	8800
	RTJ
	BW	kg	32	47	64	103	218	374	570	830	1012	1217	1760	2000	3200	3970	4280	4875	5615	6630	7610

Dimensions (mm) and weight for ANSI Class 900

Size		inch	2	2/1/2	3	4	6	8	10	12	14	16	18	20	24
L-RF		mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
L1-BW
L2-RTJ		mm	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568
H		mm	590	700	740	870	1120	1390	1592	1765	2025	2175	2510	2750	3240
W		mm	250	300	350	450	500	600	750	850	850	960	960	1000	1000
Weight	RF	kg	59	79	115	198	407	725	1091	2161	2161	3197	4409	6063	7937
	RTJ
	BW	kg	53	71	103	178	366	652	981	1945	1945	2877	3968	5456	7145

Dimensions (mm) and weight for ANSI Class 1500

Size		inch	2	2/1/2	3	4	6	8	10	12	14	16	18	20	24
L-RF		mm	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943
L1-BW
L2-RTJ		mm	371	422	473	549	711	841	1000	1146	1276	1407	1559	1686	1972
H		mm	615	705	750	927	1190	1525	1855	2185	2215	2380	2580	2195	3400
W		mm	250	350	350	450	600	750	850	850	960	960	1000	1000	1250
Weight	RF	kg	116	166	209	296	720	1275	2092	2951	4382	6355	8965	13100	15862
	RTJ
	BW	kg	105	150	188	265	650	1145	1880	2655	3945	4752	8070	11790	14275
