Gate valves and ball valves just work very differently. Gate valves operate by using the linear motion of a gate, whereas ball valves use a quarter turn rotary action for quick shutoff.
Ball valves are favored in modern U.S. plumbing and industrial systems for their quick operation, tight sealing, and minimal pressure drop, especially in high-pressure or high-flow applications.
Gate valves are best for systems that are older or infrequently used, where full shutoff is required and high reliability is critical. They work at a slower speed and require higher levels of upkeep over time.
Material selection, whether brass, stainless steel or PVC is important in regards to performance and longevity. It has a direct effect on the compatibility of materials with specific operating environments and fluid media.
Pick the valve best suited to your flow needs and frequency of use. Further, take into account system pressure, temperature, the space you have available for installation, and long-term maintenance requirements.
Consistency in inspections and maintenance are key for both valve types. They play a crucial role in protecting safe, leak-free operation while maximizing the system’s lifespan in residential, commercial and industrial applications.
Gate valves and ball valves are the two most common types of shut-off valves. Throughout the United States, they are typically installed into plumbing, HVAC, and most industrial piping, valves, and fittings.
Gate valves open and close by raising a solid gate so that nothing interferes with the flow. If they are not exercised often enough, they can bind and create problems.
Ball valves use a turning ball with a hole through it, giving fast shut-off and tight seals, even after long use. Both types work well for water, gas, and oil lines.
Gate valves are ideal for slow, full-range flow control, while ball valves allow fast on-off action. To fit the correct valve to an application, think about the flow requirements and the pressure requirements.
Consider the frequency with which the valve will be actuated.

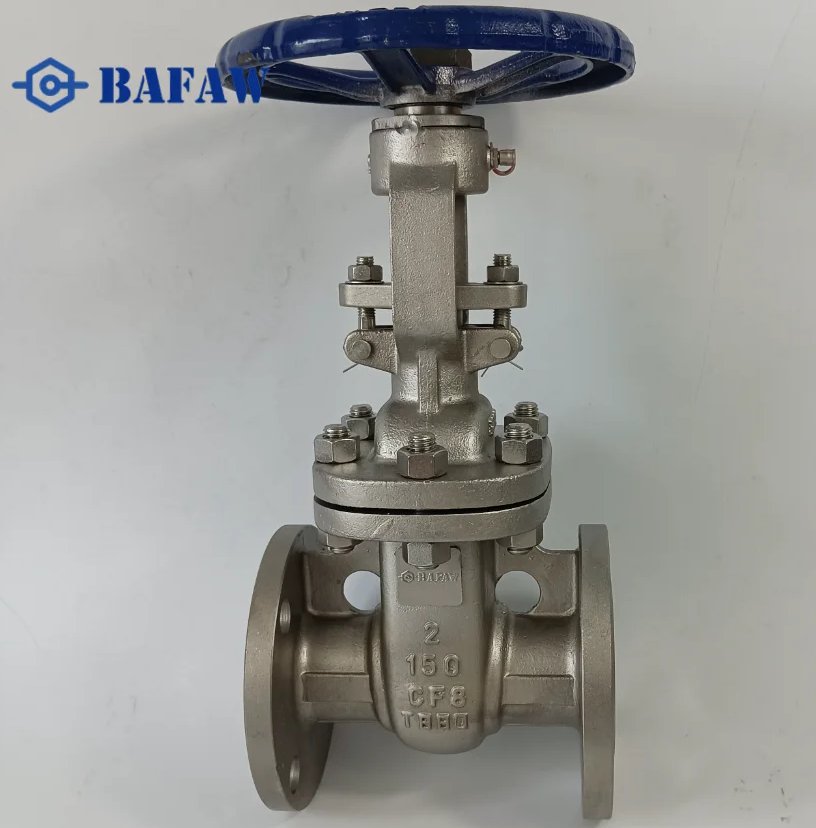

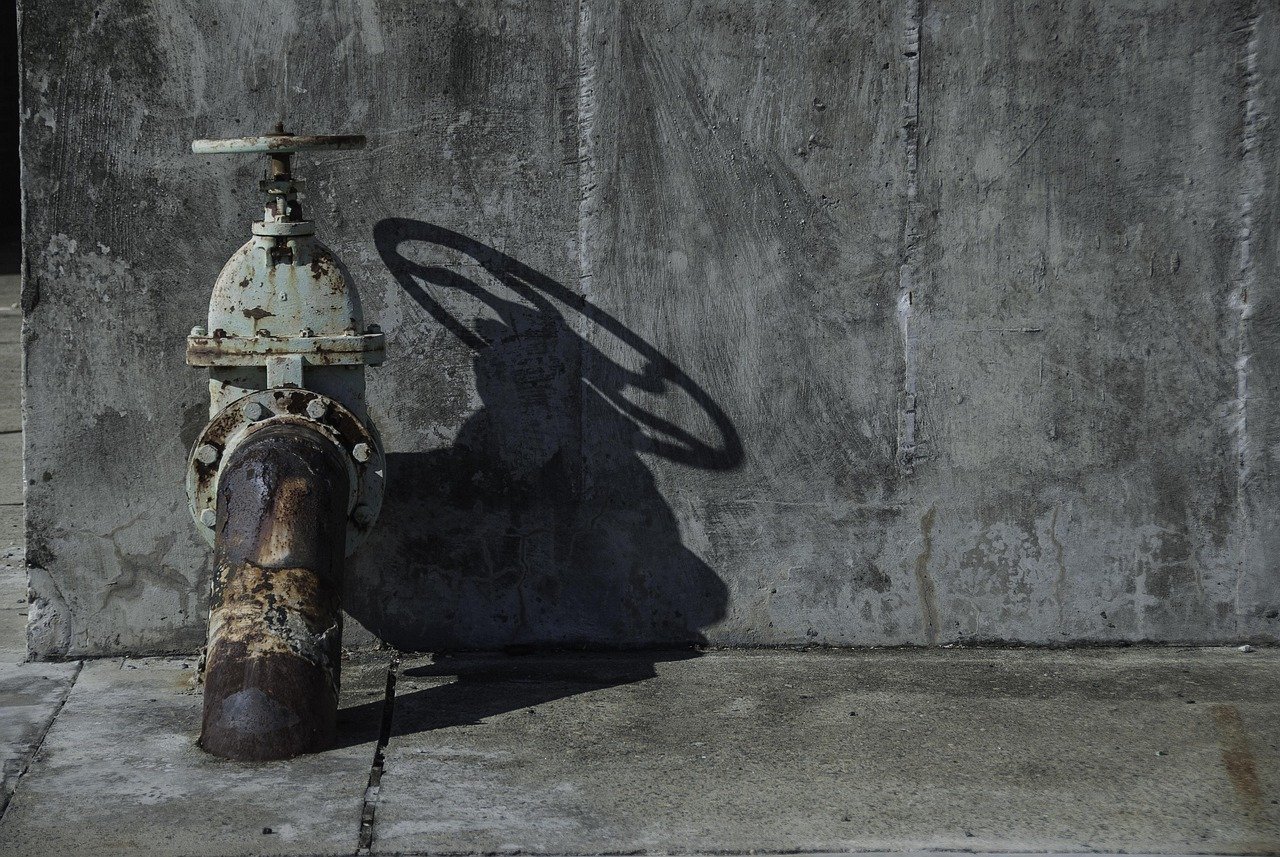

A gate valve is a mechanical device used to control the flow of liquids or gases. It accomplishes this by raising and lowering a flat or wedge-shaped gate within its body. You might see these valves in water supply lines and fire protection systems.
They are key in many industrial process installations, where a tight shutoff is required with no bypass. They are built with resilient materials including brass, cast iron, ductile iron, or stainless steel. This unique design makes them extremely sturdy, resistant to extreme conditions such as 700 bar pressure and 350°C temperature.
Typical gate valves are between ½ inches and 1 foot in diameter. This unique versatility allows them to be used in everything from small riveted pipes to large industrial process lines. Their ability to provide a tight shutoff is their biggest attraction. This feature is what makes these valves critical for creating a tight seal.
The basic gate valve design consists of three primary components. The gate opening and closing adjusts flow, the stem provides up and down movement of the gate, and the body provides the exterior structure.
Some designs employ a solid wedge, while others use a flexible or split gate for improved sealing. Shapes such as rectangular or wedge gates alter the way the flow is interrupted and how effectively the valve seals.
You can identify them by their either rising or non-rising stems. Their sizes can be hugely different, from tiny half-inch household fittings to large 30-centimeter industrial types. Another factor is the shape of the gate. It affects how abrupt and turbulent the flow is when you start and stop, and it affects the quality of the seal.
To close the gate valve, turn the handwheel in the opposite direction. This circular motion rotates the stem, which lifts the gate. To open it, just do the opposite.
A gate valve takes a few full rotations to open or close. A ball valve has a simple quarter-turn operation. This gradual motion is beneficial in systems where a sudden transition might produce water hammer or strain piping.
When the gate is not completely closed, there is potential for leaks, as debris can clog the mechanism.
Gate valves have been reliable workhorses in legacy systems. Newer ball valves are generally more durable and have longer lifespans.
Gate valves are still what people reach for the big, rare shutdown jobs. Their uncomplicated design means they tend to break less. While they’re easier to repair, they do need more maintenance, particularly in legacy infrastructure where corrosion may rust them shut.
Ball valves are quarter-turn rotary valves based on a hollow pivoting ball that controls the flow of fluid through the pipe. Through the center of the ball is a hole or bore that is drilled completely through the sphere. When the bore is parallel to the pipe, the liquid or gas flows freely through.
Rotate the ball a quarter turn (90 degrees) and the ball’s bore stops the flow. That clear open-or-shut action, quick and trusted, is what makes ball valves so popular in homes, factories, and labs.
A ball valve’s primary components include the ball, the stem, and the seat. The ball is typically housed within the valve body and rotates with the stem as it’s actuated. The seat, typically constructed from PTFE or reinforced plastics, ensures the tight seal.
Most valve bodies are made from either brass, stainless steel, or PVC. Brass is a good choice for water and air service. Stainless steel resists corrosive chemicals and high temperatures. PVC’s resistance to corrosion and radical chemicals makes it ideal for many outdoor or water-based applications.
Two-way valves are typically used for basic on-off tasks. Three-way or multi-port valves allow you to divert flow between pipes, such as sending water to two separate storage tanks. The impressive seal is its hallmark—ball valves are known to seal leaks, even after years of inactivity.
The salient feature is speed. With just a quarter turn, you have either completely open flow or complete shutoff. The handle indicates the position of the ball—if the handle is in line with the pipe, it’s open. If it’s horizontal, it’s closed.
This rapid rotation is useful in emergency situations, when you need to stop the flow of something fast. Ball valves minimize pressure loss too—the flow path is straight when the valve is open, so there’s a low level of resistance.
Increasingly, pros are choosing ball valves for plumbing and process applications. They’re more durable, withstand greater pressure, and are easier to operate. Their tight shutoff means you’ll worry less about leaks, and their quick-turn handle makes them faster than traditional gate valves.
Today’s ball valves are still leading the way in dependable, cutting edge flow control.
Understanding the differences between gate valves and ball valves is crucial as it highlights how each type valve meets specific needs in plumbing, potable water systems, and manufacturing environments. These valves utilize different mechanisms to control water flow, which significantly influences their response time and suitability for various applications.
Gate valves operate with a flat or wedge-shaped gate that rises and falls to open or close the flow path. Rotating the valve handle raises the gate, allowing fluid to flow, or lowers it to stop flow. This linear movement up and down means you have to crank the handle several times around.
Many times, you will have to turn past a full revolution to fully retract the gate. The gate valve’s linear movement is perfect for handling large, slow, steady flows. When you need fast shutoff most, it fails to reliably deliver it.
Over time, the flat gate slides hard against the valve seat and creates excessive wear. This wear eventually results in leaks or makes it harder to turn the valve. In water lines or places with constant flow, this lagging action presents less of a concern. In systems where water moves quickly, it becomes a huge liability.
Ball valves use a round ball with a hole in the middle, turned by a stem linked to the handle. A single quarter turn—just 90 degrees—opens the hole fully to line it up with the pipe for full flow, or block it off completely for shutoff.
This quick spin makes ball valves stand out in jobs where fast shutoff matters, like gas lines or emergency water stops. The ball design reduces friction, thus making it ideal for high pressure operations. Some ball valves can even accommodate more than two ports, which makes them ideal for intricate flow requirements.
Gate valves spend more time actually opening or closing, as the handle must be rotated several times. Ball valves operate significantly quicker, requiring only a quarter turn. If you need a system that responds instantaneously, like in fire safety or chemical factories, opt for a ball valve.
It provides the best performance for fast-acting applications. The high speed of ball valves allows them to prevent cavitation, which can damage the system. More importantly, quick stops and starts help prevent leaks and spills.
Ball valves show their status by the angle of the handle. When the handle is in line with the pipe, it’s open; when it’s perpendicular, the valve is closed. Gate valves are frequently unmarked.
This can complicate efforts to quickly know whether or not they are open or closed. In professions where errors might result in irreversible damage, unambiguous indicators are critical, and ongoing monitoring assists in maintaining safety.

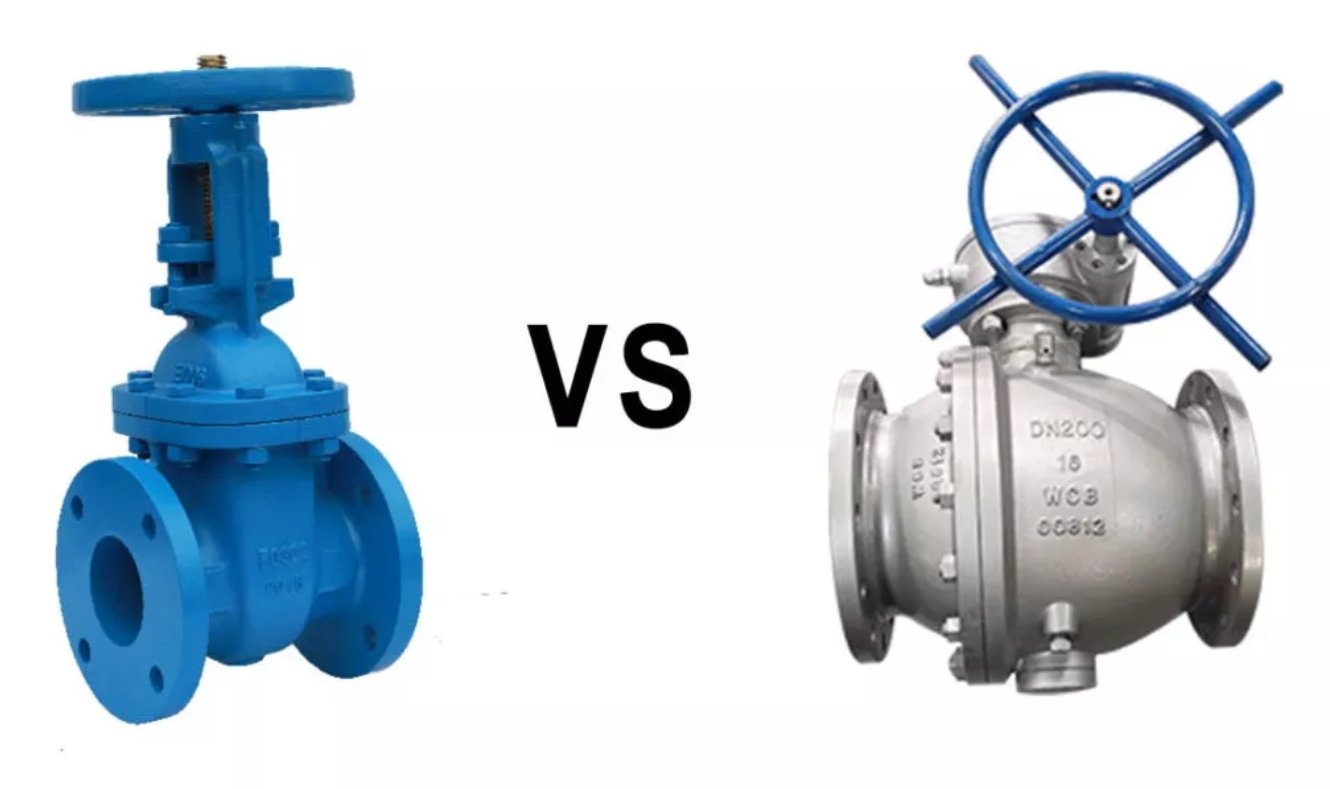

Understanding the core differences between gate and ball valves helps users pick the best fit for their fluid systems, whether it’s for water lines in a city apartment or a high-pressure setup in a factory. In general, both valves function as shutoff devices. Their design, operation and performance are very different, impacting installation, maintenance and long-term reliability of the system.
Here’s a concise table to start:
Feature | Gate Valve | Ball Valve |
---|---|---|
Design | Sliding gate, vertical movement | Rotating ball with hole |
Operation | Handwheel, >360° turn | Lever, 90° turn |
Flow Control | Linear, slow to open/close | Quick quarter-turn |
Sealing | Metal-to-metal or soft seat | Soft or hard seat, tight seal |
Pressure Drop | Low when fully open | Low, but slightly higher |
Durability | Prone to wear with frequent use | Robust, supports high-cycle |
Maintenance | Harder, must remove for repairs | Easier, especially 3-piece |
Common Materials | Brass, steel, iron | Brass, steel, PVC |
Installation Space | Taller, slimmer | Shorter, wider |
Gate valves and ball valves appear and operate very differently at their center. A gate valve has a wedge-shaped gate. This gate travels vertically between seating positions to either interrupt or permit flow. Since this gate moves perpendicular to the flow, the valve is very tall and narrow.
On the other hand, a ball valve has a spherical ball with a hole drilled through it. Just turn the lever 90°, and the ball turns with it. This movement either aligns the opening with the flow path to create an opening or misaligns it to provide a seal and close. Ball valves are usually shorter, but wider than gate valves.
Duty application determines the material choice, which in turn affects longevity and what these valves can endure. Most gate valves come in brass, steel, or cast iron. These materials hold up well under extreme pressure, but they are subject to corrosion when fluids that are abraded and erosive come into contact with them.
Ball valves are available in many materials such as brass, steel, stainless steel, and even PVC. This breadth creates excellent solutions for abrasive and non-abrasive conditions. Gate valves usually have a soft seat and sometimes they are metal to metal sealing. When these valves are used often, the sealing surface can wear down.
Ball valves typically have PTFE or reinforced seats. This core design offers a tighter seal and easier repair, particularly in three-piece designs that enable the replacement of the seat and seal without having to take out the entire valve.
One consideration in valve design is where you can install the valve. Gate valves need extra vertical clearance for the handwheel and stem. In contrast, ball valves, although larger footprint-wise, are easier to accommodate into space restricted vertical applications.
Gate valves function using a linear motion that raises or lowers the gate. As such, you require more than one complete rotation of the wheel to fully open or shut them. This gradual change allows you to precisely adjust the flow, but it’s not immediate.
Ball valves only need a quarter turn (90°) of the handle to go from completely open to completely closed. This design gives room for a quick reaction time. The technique is especially important in applications requiring rapid shutoff—like in emergency situations or in automatic operations.

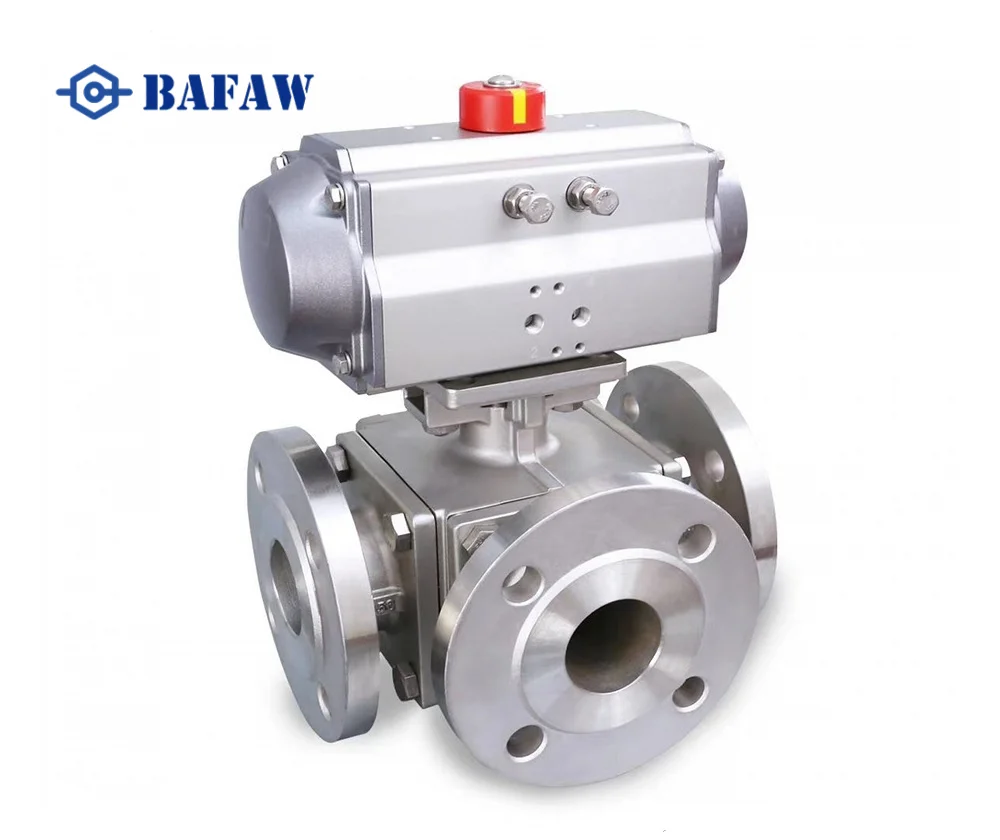

This is where ball valves really shine, as actuators can cycle them in a pinch. In terms of flow efficiency, both valves perform well in the open position. Gate valves, with the gate completely out of the flow path, present very little obstruction to the fluid so they are not disruptive.
Ball valves have a straight passage to allow for full flow. If the bore is less than that of the pipe, they can modestly save pressure. Both handle water, gas, and oil, though ball valves’ simple turn and tight seal make them better for dirty or thick fluids.
Its seats, typically made of PTFE or other plastics, create a tight seal against the ball’s polished surface that prevents leaks at even high pressures. Gate valves rely on the gate’s seating against the valve body for operation. This starts to be not so dependable once the components start wearing out.
The tighter the seal, the lower the chance of a leak occurring—a necessity for systems that transport dangerous or expensive fluids. It’s much easier to replace seals in three-piece ball valves. This benefit keeps you safe from leaks and tightens up your downtime.
Both valves are designed to be full-port, allowing the fluid to pass through with minimal obstruction. When wide open, a gate valve’s unobstructed path causes nearly zero pressure drop. Ball valves, when sized appropriately, similarly maintain low pressure drop, though narrower bores can introduce additional resistance.
When pressure drop impacts the sizing of pumps or process flow, use a valve with a full-bore design. In a case like this, a ball valve is usually the ideal choice to keep everything moving.
Ball valves typically have a longer lifespan in applications where they are subject to frequent cycling. Their components have lower wear and tear since the ball rotates on its axis. As a result of their sliding action, gate valves experience greater wear on the gate and seats.
Ball valves, particularly of the three-piece variety, allow you to replace seats and seals, reducing long-term expenses and extending lifespan. Gate valves, though durable, tend to jam or leak relatively quickly if operated frequently or when in contact with abrasive fluids.
Gate valves weld well with materials such as brass, bronze, and steel. This makes them well-suited for high-pressure and high-temperature applications, but they have limited capabilities in service with corrosive fluids.
There’s much more flexibility with ball valves—brass for household use, stainless steel for chemical transport, PVC for low-pressure water lines. In systems such as Berlin, material selection requires consideration of water properties, pressure and actual content of the system.
Gate valves frequently get stuck, leak, or fail to fully close if debris enters the valve body between the gate and the seats. With regard to leaks, ball valves can begin to leak with seat wear or if the ball pits.
In most models, replacing parts is a pretty simple task. Both require regular maintenance inspections, but ball valves are easier to maintain due to their design.
Gate valves are very tall and have a long stem, requiring additional overhead space above the pipe. Ball valves are more compact, though wider, so require enough space to swing the lever arm. This determines which valve will work best, especially in narrow cabinets or along wall lines.
In the case of underground or hard-to-reach locations, ball valves’ quick cycle and short profile ensure they can be readily accessed and repaired.
Gate valves are ubiquitous across many systems, from city water mains to office building heating pipes. Their design works because of its simplicity. A flat or round gate moves up and down to stop the flow, then retracts to let it flow through. All of this combined makes them one of the easiest valves to use and most versatile valves to fit in a wide variety of setups.
They’re designed for durability, so that’s an added benefit. Gate valves hold up well in areas that are under high pressure or heat. Some are capable of operating at 700 bar and 350°C. Since they operate with flow in either direction due to their two-port (or two-way) design, gate valves provide even more flexibility.
If you have an application where you don’t require frequent opening and closing of the valve, they are ideal. For instance, on a typical building’s main water line, you would likely only need to shut off flow temporarily for a repair. When closed, a gate valve provides nearly 100% shutoff flow. This makes them ideal situations when very high pressure requires a tight seal.
They are less expensive than many of the more ostentatious alternatives. Due to their simple design, they’re significantly easier to repair and replace. When you require complete shutoff or laminar flow with minimal pressure loss, they fit the bill.
They are equally the best for water or gas pipelines. These pipelines are only needed to be opened and closed from time to time. In low-flow applications such as fire sprinkler systems or municipal water pipes, they help maintain proper pressure without drama.
Despite these advantages, gate valves do come with some downsides. They can be fiddly to operate because they need a full 360° revolution to open or shut. This design means that they are slower than quarter-turn ball valves. This can be a major headache come emergency time.
With time, grit or mineral build-up can render them difficult to operate or lead to leaks. Another concern is when a valve is opened and closed quickly and repeatedly, causing excessive operational wear. In systems that experience extreme shaking, valves can even bounce off their seats and thus fail to seal completely.
These stumbles render them less dependable in certain industrial configurations.
Ball valves are a critical component in controlling the flow of water, steam, oil and gas. They are often used in non-industrial residential applications as well. Due to their ease of use, quick operation, and durable construction, ball valves have become a mainstay in countless systems.
Like any tool, they have strengths and weaknesses. In this section, we’ll discuss the strengths and weaknesses of ball valves. It is a look at what they don’t do, and how they fit into multiple workflow.
A major strength of ball valves is their fast on-off control. You only have to turn them a quarter turn, 90 degrees, to fully open or close them. This design makes for much quicker action than gate valves, which need multiple turns.
This rapid response is ideal for applications that need immediate shut-off. It performs particularly well in emergency shut-off applications and to systems that are often cycled. Ball valves provide a complete seal as well, preventing leakage—which is critical for applications such as gas lines or chemical factories.
Their simplistic design, featuring a round ball and full bore (opening), allows for fluid to pass through with minimal resistance. In most applications, this leads to lower pressure drop. However, in cases where it is only partially open, a ball valve can cause turbulence and a more erratic flow.
Ball valves are able to manage high pressure and high flow, remaining leak free for decades if properly maintained. Three-piece designs allow for easy user replacement of seats and seals. This design removes the need to pull the valve completely out, meaning less downtime.
These valves work great in industries like waterworks, food and beverage, and gas plants. Where they really excel is when the pipe size is less than 2 inches.
This does not mean that ball valves are without their flaws. When the seat wears out—usually due to grit or aggressive chemicals—the seal is lost, and leaks can occur. Adding to these problems is the fact that poor maintenance or use of the inappropriate valve for the application can exacerbate these problems.
Quicker flow adjustments Ball valves do not perform well on pipe sizes over 2 inches and where flow must be throttled. Their spherical design naturally causes turbulence and excessive pressure drop if they are not fully open.
They cost more initially, largely in three-piece types, which may not allow for small budgets. Additionally, users need to be on the lookout for leaks and seat wear, because a malfunctioning valve can both delay jobs or even pose safety hazards.
Deciding between gate and ball valves largely depends on their ideal application in real-life field tasks. Understanding what each valve does and where it fits in the field is essential. Its location is up to flow requirements, pipe diameter, and how often you want to open and close the valve.
Selecting the proper valve ensures safer systems, saves costs, and reduces downtime. Here’s where each valve excels, with stats on why these selections are important.
Gate valves are most effective in applications where you need a valve that is either fully open or fully closed. These valves do well in water supply lines, irrigation, fire protection, and sewage systems. They are most effective in applications with larger pipes, usually two inches or larger.
That’s because their construct makes transmissions water and other fluids to flow directly through with little resistance. You’ll find them in municipal water mains, wastewater treatment plants, and legacy plumbing systems in large commercial and institutional buildings. They suit situations where a line is normally left open.
Ideally, you’d use them only when you know you need to shut down for repairs or in an emergency.
Compared to gate valves, ball valves are more effective at quickly shutting off, providing a tight seal, and enduring high pressure. Today, you can find them in gas lines, water treatment, chemical plants, and HVAC systems.
Their low-torque action and design make them perfect for jobs needing quick stops, like emergency shut-offs or automated process lines. Durability and leak-proof seals are essential in newer plumbing applications and ball valves work great for this as well.
They are made in three or four port versions, making them ideal for mixing or splitting flows.
Ball valves are typically found shut-off main lines, sinks and outside spigots. In addition to their simple operation, they seal extremely well. Gate valves are more commonly found in plumbing of older homes, or in large municipal water supply lines.
In industry, both types exist, but the application is based on flow requirements and safety considerations. Process control systems and gas distribution systems are typical applications for ball valves.
Gate valves are perfect for controlling big water lines and waste systems. Choosing the proper valve prevents damage to plumbing, prevents leaks, and allows systems to operate efficiently.
Selecting between gate and ball valves depends on your system’s needs, the kind of fluid, and how often you use the valve. Choosing the right valve for your specific application can save you years of reliable performance and reduce maintenance costs.
The right one for you is determined by your flow, pressure and budget requirements. Here’s a quick look at the main things to check:
Flow rate and control needs
How often the valve will be operated
Pressure and temperature demands
Installation requirements and costs
Maintenance needs over time
If you need high flow and fast shut-off, ball valves do best. Their 90° quarter turn saves time by letting you open/close the line in just seconds. This feature is particularly useful for water supply lines and air lines.
Gate valves have a slow rise stem that provides more precise adjustments for throttling flow. If you require to divide streams or reverse circulation, multi-port ball valves are the choice. Match the valve to flow needs. Fast on and off control for a ball valve vs. Slow, gradual control with a gate valve.
If you need to cycle the valve dozens of times a day, a ball valve’s design resists wear over time. Its seats and seals are easy to replace on three-piece models, making their fix simple.
Gate valves are great for locations where you only need to open and close them once in a while. Their design can get stuck if you actuate them too often.
Each valve is rated for a specific pressure and temperature. Ball valves, due to their quarter-turn pattern and tight seal, are known to resist leaks even in extreme conditions.
For steam or high-pressure lines, always verify the specifications to prevent premature wear. Work that is pressure-sensitive, such as chemical lines, requires the right valve rating to maintain safety.
Ball valves, particularly three-piece, are more expensive initially but allow easier repair and maintenance. Gate valves may be less expensive but more difficult to repair on site.
Consider the installation cost as well as potential future repair expenses.
Consider long-term maintenance. Ball valves require less attention in the long run, particularly when you choose three-piece models.
Gate valves, for instance, can become stuck or leak over time if not regularly tested. Whatever valve you choose, plan to inspect seals and seats periodically.
To choose between gate valves and ball valves, consider your application requirements. Gate valves provide excellent flow control and are ideal for use in larger diameter pipes. Ball valves open and shut quickly, require minimal exertion, and maintain high pressure without leaking. Think about what you want: steady flow, easy shutoff, or less upkeep. For residential water lines, ball valves usually prevail for quickness and water-tightness. For large diameter water mains or locations where flow control capability is essential, gate valves are the ideal solution. There isn’t one valve that’s right for all applications. Each type has one thing they do the best. To read more about how to choose the correct valve, head over to home improvement discussion boards. You can get matched with an expert to help you weigh your options.
What is the main difference between a gate valve and a ball valve?
A gate valve uses a sliding gate to stop or start flow, while a ball valve, particularly the brass ball valves, utilizes a rotating ball with a hole. Ball valves are quicker to turn on and off, making them a useful type in plumbing systems.
Which valve is better for quick shut-off?
Which valve is more suitable for quick shut-off? Their quarter-turn design allows for quicker and more efficient operation than gate valves.
Are gate valves or ball valves more durable in the long run?
Ball valves, such as brass ball valves and PVC ball valves, tend to have a longer lifespan due to their simple design, which creates a tight seal and minimizes leaks.
Can both valve types handle high pressure?
So, can both valve types handle high pressure? Ball valves, especially brass ball valves, shine under these conditions and are incredibly unlikely to fail.
Which valve is more suitable for residential plumbing in the U.S.?
Which valve is better for residential plumbing in the U.S.? According to Richmond, brass ball valves provide positive shut-off, easy operation, and reduced chance of leakage in the plumbing system.
Are gate valves or ball valves easier to repair?
Ball valves, such as brass ball valves, tend to be easier to repair or replace compared to gate valves, which have increased moving parts.
Do ball valves or gate valves handle dirty water better?
Do ball valves, like brass ball valves, or gate valves handle dirty water better? Gate valves are likely to become clogged or stuck if debris is present.
