What Is a Lap Joint Flange? What Is a Lap Joint Flange Used For?

In the intricate world of piping systems, various types of flanges serve as essential components to ensure the integrity, flexibility, and efficiency of fluid conveyance. Among these, the lap joint flange stands out for its unique design and versatile applications.

In the intricate world of piping systems, various types of flanges serve as essential components to ensure the integrity, flexibility, and efficiency of fluid conveyance. Among these, the lap joint flange stands out for its unique design and versatile applications.



What Is a Lap Joint Flange?

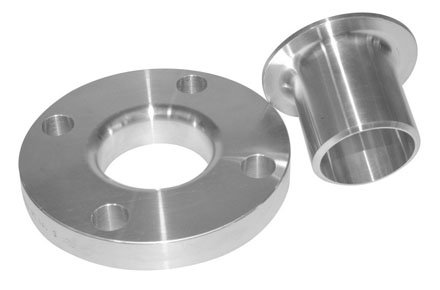

A lap joint flange, also known as a loose flange, is a type of flange used in piping systems to facilitate easy assembly, disassembly, and alignment of pipes or fittings. It consists of two main components: the stub end and the backing flange.




Stub End

The stub end is a short section of pipe with one end either welded or threaded. It features a tapered or flat face that facilitates easy insertion into the backing flange. The length of the stub end typically conforms to standard pipe thickness specifications.



Backing Flange

The backing flange is a ring-shaped component with bolt holes around its perimeter. It has a flat face and an inner diameter slightly larger than the outer diameter of the pipe or stub end. The stub end fits inside the backing flange, and the two components are not welded together.




What Is a Lap Joint Flange Used For?

The utility of lap joint flanges extends across various industrial domains, owing to their inherent advantages and adaptability to diverse operational requirements. Let's delve into the key applications and uses of lap joint flanges:



Easy Assembly and Disassembly

Lap joint flanges facilitate the easy assembly and disassembly of piping systems. The loose fit between the stub end and the backing flange allows for quick installation and removal of components without requiring extensive welding or special tools. This feature is particularly useful for systems that require frequent maintenance or modification.



Flexibility in Alignment

Lap joint flanges provide flexibility in pipe alignment during installation. The stub end can rotate within the backing flange, allowing for slight adjustments to ensure proper alignment of piping components. This flexibility helps to minimize stress on the system and ensures efficient fluid flow.



Other Advantages

Lap joint flanges are often a cost-effective solution compared to other types of flanges. Since the stub end is not welded directly to the pipe, it can be reused if the pipe needs to be replaced or modified. Additionally, lap joint flanges do not require precision welding, reducing labor and material costs associated with installation.



In conclusion, lap joint flanges epitomize efficiency, reliability, and versatility in the realm of piping systems. From their simple yet ingenious design to their myriad applications across industries, lap joint flanges continue to play a pivotal role in ensuring seamless fluid conveyance and operational excellence. If you have any further questions, inquiries, or if you're interested in integrating lap joint flanges into your piping systems, don't hesitate to reach out to us.
