1. Valve design according to DIN 3352 / SABS 664
2. Face to face dimensions according to DIN 3202 F5/ SABS 664
3. Socket Ends dimensions comply ISO 4422、ISO 4422.2
4. Hydraulic test according to ISO5208
TECHNICAL REQUIREMENT :
Outside stem and yoke (OS&Y)
Stem Seal with O-ring
Bolt bonnet, Full bore
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick
Working pressure 250 PSI/17.2 Bar Non-Shock Cold
| No. | Part Name | Material |  |
| 1 | Body | EN- GJS- 500- 7 | |
| 2 | Wedge | EN- GJS- 500- 7 | |
| 3 | Wedge Coating | NBR /EPDM | |
| 4 | Wedge Nut | Copper Alloy | |
| 5 | Stem | Stainless Steel X20 Cr13 | |
| 6 | Bonnet Gasket | NBR /EPDM EN | |
| 7 | Bonnet | EN- GJS- 500- 7 | |
| 8 | O Ring Back Sealing | EPDM/NBR | |
| 9 | Stem Collar | Stainless Steel / Copper Alloy | |
| 10 | O-Ring | EPDM/NBR | |
| 11 | O-Ring | EPDM/NBR | |
| 12 | Stuffing Nut | Copper Alloy | |
| 13 | Dust Guard | EPDM/NBR | |
| 14 | Hand Wheel | EN- GJS- 500- 7 | |
| 15 | Stem Cap | EN- GJS- 500- 7 |

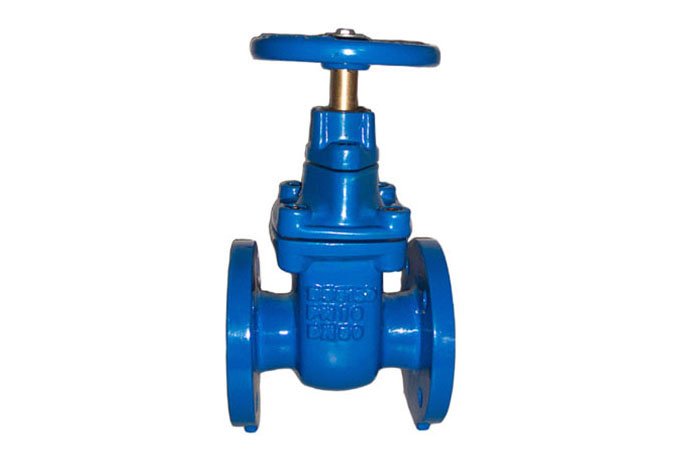

DIN3352 F5 Resilient Seat Cast iron Gate Valve

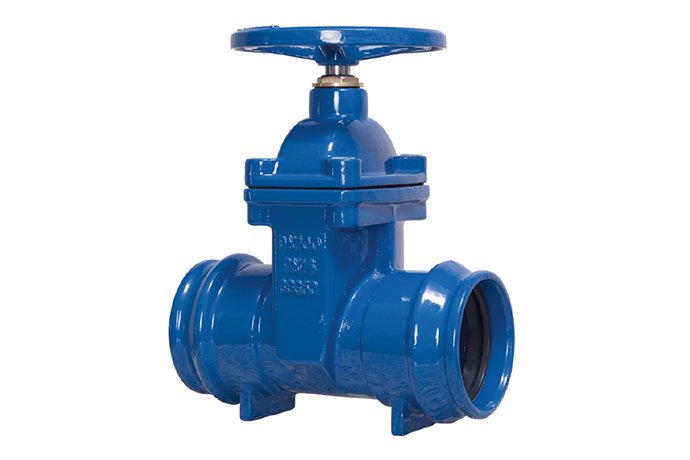

PVC Socket Ends Gate Valve
DIN3352 F4 Resilient Seat Cast iron Gate Valve
BS5150 Metal-Seal Cast iron Gate Valve

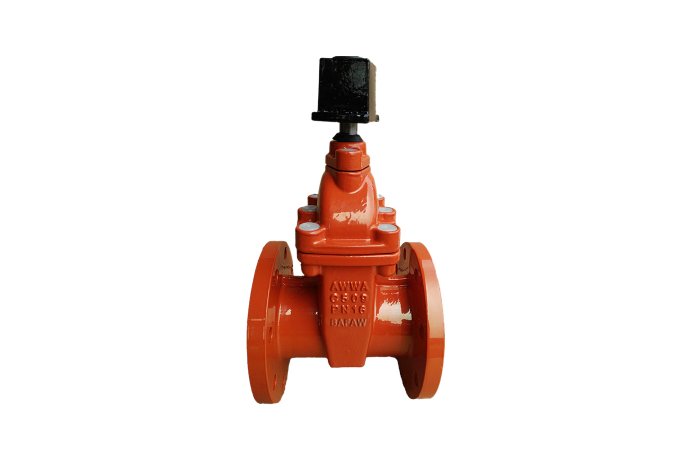

AWWA C509 AWWA C515 Cast iron Gate Valve

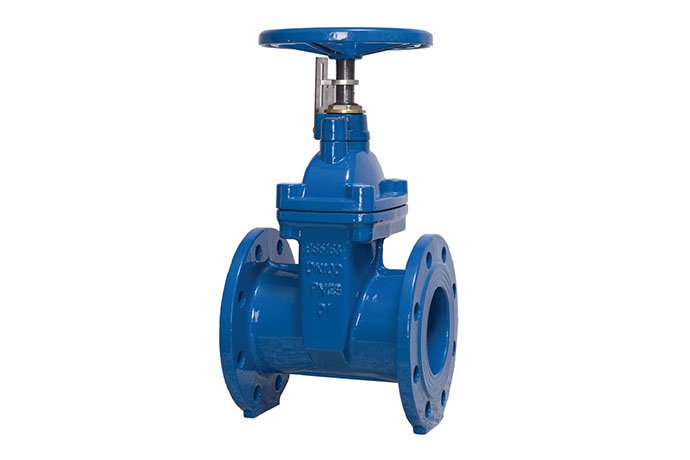

BS5163 Resilient Seated Non-Rising Stem Cast iron Gate Valve
MSS SP-70 Metal-Seal Cast iron Gate Valve

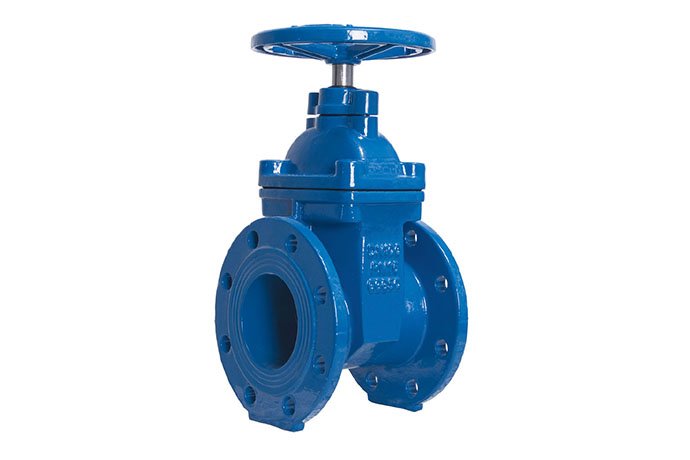

SABS 664 Ductile iron Gate Valve
